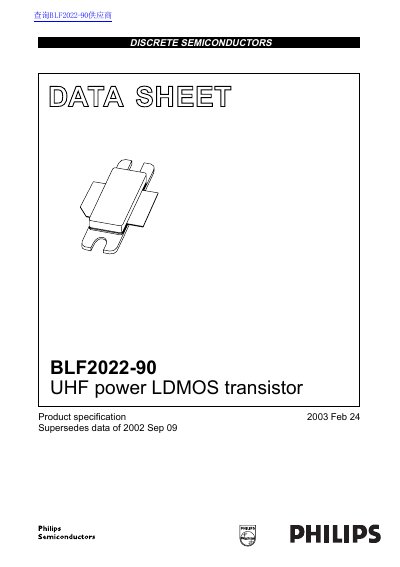

Philips BLF2022-90 UHF Power LDMOS Transistor Datasheet
The document describes the Philips BLF2022-90, an internal-matched LDMOS transistor intended for RF power amplifiers in W-CDMA base stations and multicarrier applications within the 2000 to 2200 MHz frequency range. Key features include a gain of 12.5 dB, 20% efficiency, and excellent thermal stability.
Read onlinePhilips BLF202 specifications
| Output Power (AV) | 11.5 W |
|---|---|
| Gain | 12.5 dB |
| Efficiency | 20% |
| ACPR | -42 dBc at 3.84 MHz |
| Frequency Range | 2000 to 2200 MHz |
| Drain-Source Voltage (Max) | 65 V |
| DC Drain Current (Max) | 12 A |
Source: Philips BLF2022-90 UHF Power LDMOS Transistor Datasheet
All Philips BLF202 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Philips BLF2022-90 UHF Power LDMOS Transistor Datasheet 12 p
- Philips BLF2022-70 UHF Power LDMOS Transistor Datasheet 12 p
- Philips BLF2022-30 UHF Power LDMOS Transistor Datasheet 12 p
- Philips BLF2022-125 UHF Power LDMOS Transistor Data Sheet 8 p
- Philips BLF2022-120 UHF Push-Pull Power LDMOS Transistor Preliminary Specification 7 p
- Philips BLF202 HF/VHF Power MOS Transistor Product Specification 16 p
Questions answered in these manuals
What is the typical supply voltage for W-CDMA performance?
The typical supply voltage for W-CDMA performance is 28 V.
From: Philips BLF2022-90 UHF Power LDMOS Transistor Datasheet
What is the maximum junction temperature?
The maximum junction temperature (Tj) is 200 °C.
From: Philips BLF2022-90 UHF Power LDMOS Transistor Datasheet
What are the limiting values for the BLF2022-70?
The maximum drain-source voltage is 65 V, gate-source voltage is +15 V, DC drain current is 9 A, and storage temperature ranges from -65 to +150 °C.
From: Philips BLF2022-70 UHF Power LDMOS Transistor Datasheet
Is the BLF2022-70 suitable for W-CDMA base stations?
Yes, it is designed specifically as an RF power amplifier for W-CDMA base stations and multicarrier applications in the 2000 to 2200 MHz frequency range.
From: Philips BLF2022-70 UHF Power LDMOS Transistor Datasheet
What is the primary application for the BLF2022-30?
It is used for RF power amplifiers in W-CDMA base stations and multicarrier applications.
From: Philips BLF2022-30 UHF Power LDMOS Transistor Datasheet
What is the operating frequency range?
The transistor is designed for operation between 2000 and 2200 MHz.
From: Philips BLF2022-30 UHF Power LDMOS Transistor Datasheet
