Start here

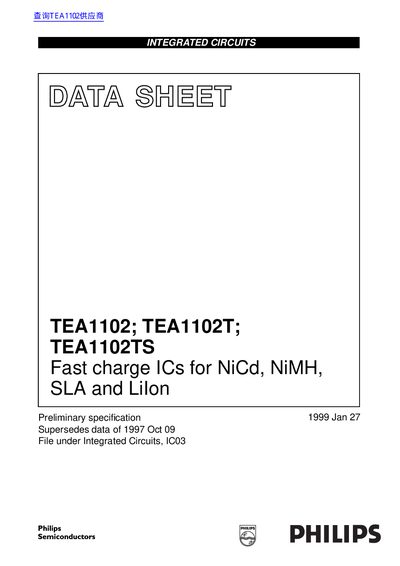

Philips TEA1102 TEA1102T TEA1102TS Fast charge ICs for NiCd NiMH SLA LiIon handbook
This document is a preliminary specification datasheet for the TEA1102 family of integrated circuits (TEA1102, TEA1102T, TEA1102TS) manufactured by Philips Semiconductors. These ICs are designed to provide safe and fast charging solutions for Nickel Cadmium (NiCd), Nickel Metal Hydride (NiMH), Sealed Lead Acid (SLA), and Lithium Ion (LiIon) batteries.
Read onlinePhilips TEA1102T specifications
| Supply Voltage (Vp) | 5.5 - 11.6 V |
|---|---|
| Package Type | DIP20, SOT146-1; SOT163-1; SOT339-1 |
| Fast Charge Current Range | 0.5 CA to 5 CA nominal |
| Maximum Battery Charge Current (NiCd/NiMH) | 10 mA |
Source: Philips TEA1102 TEA1102T TEA1102TS Fast charge ICs for NiCd NiMH SLA LiIon handbook
All Philips TEA1102T documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What battery types are supported by the TEA1102?
The IC supports safe and fast charging for Nickel Cadmium (NiCd), Nickel Metal Hydride (NiMH), Lithium Ion (LiIon), and Sealed Lead Acid (SLA) batteries.
From: Philips TEA1102 TEA1102T TEA1102TS Fast charge ICs for NiCd NiMH SLA LiIon handbook
How does the IC detect full charge for NiCd/NiMH batteries?
It uses AT/At (temperature detection) and/or peak voltage detection, automatically switching to voltage peak if no temperature sensor is present.
From: Philips TEA1102 TEA1102T TEA1102TS Fast charge ICs for NiCd NiMH SLA LiIon handbook
