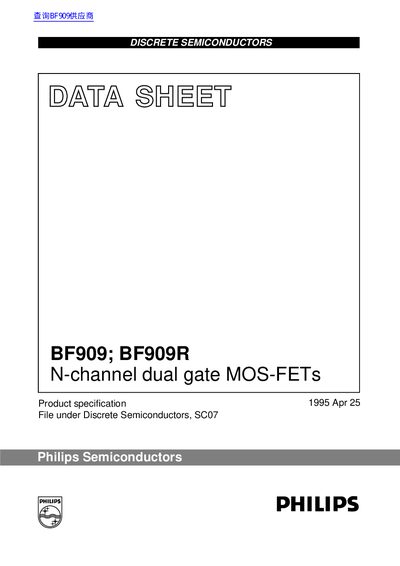

Philips BF909; BF909R N-channel Dual Gate MOS-FETs Datasheet
This datasheet provides product specifications for the Philips BF909 and BF909R, which are N-channel dual gate MOS-FETs. These devices are specially designed for use at 5 V supply voltage and feature high forward transfer admittance. They are intended for applications such as television tuners and professional communications equipment.
Read onlinePhilips BF909 specifications
| Supply voltage | 5 V |
|---|---|
| Drain-source voltage | 7 V |
| Drain current | 40 mA |
| Total power dissipation | 200 mW |
| Operating junction temperature | 150 °C |
| Forward transfer admittance | 43 mS |
| Input capacitance at gate 1 | 4.3 pF |
| Noise figure | 2.8 dB |
Source: Philips BF909; BF909R N-channel Dual Gate MOS-FETs Datasheet
All Philips BF909 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the main applications for the BF909 and BF909R?
They are used in VHF and UHF applications with 3 to 7 V supply voltage, such as television tuners and professional communications equipment.
From: Philips BF909; BF909R N-channel Dual Gate MOS-FETs Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature is 150 °C.
From: Philips BF909; BF909R N-channel Dual Gate MOS-FETs Datasheet
