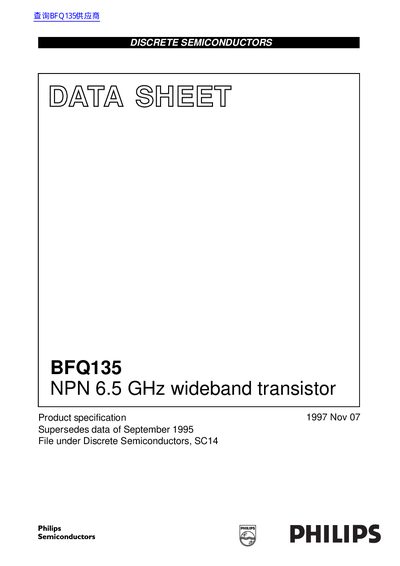

Philips BFQ135 NPN Transistor Datasheet
This document is a product specification datasheet for the Philips BFQ135, an NPN wideband transistor designed for frequencies up to 6.5 GHz. The device features emitter-ballasting resistors and gold sandwich metallization to ensure optimum temperature profiles and reliability. It is housed in a 4-lead dual-emitter SOT172A2 package with a ceramic cap.
The datasheet provides comprehensive electrical characteristics, including limiting values for voltage and current, thermal resistance data, and performance metrics such as transition frequency (fT) and maximum unilateral power gain (Gum). It also includes application information suggesting use in MATV and microwave amplifiers, radar systems, and oscilloscopes.
Philips BFQ135 specifications
| Product Type | NPN wideband transistor |
|---|---|
| Maximum Collector-Emitter Voltage (VCEO) | 19 V |
| Maximum Collector Current (IC) | 150 mA |
| Total Power Dissipation (Ptot) | 2.7 W |
| Package Type | SOT172A2 |
All Philips BFQ135 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum junction temperature for this device?
The maximum junction temperature (Tj) is 200 °C.
What is the maximum total power dissipation for this transistor?
The maximum total power dissipation is rated at 2.7 W when the case temperature is below 145 °C.
What safety precaution is required because the device contains beryllium oxide?
The product contains beryllium oxide and must not be damaged; handling and disposal must follow hazardous‑waste regulations.
From: Philips BFQ135 NPN 6.5 GHz Wideband Transistor Datasheet
What package does the BFQ135 use?
It is supplied in a studded ceramic SOT172A2 4‑lead package.
From: Philips BFQ135 NPN 6.5 GHz Wideband Transistor Datasheet
What package type does the BFQ135 use?
It is supplied in a 4‑lead dual‑emitter SOT172A2 ceramic package.
From: Philips BFQ135 NPN 6.5 GHz Wideband Transistor Datasheet
