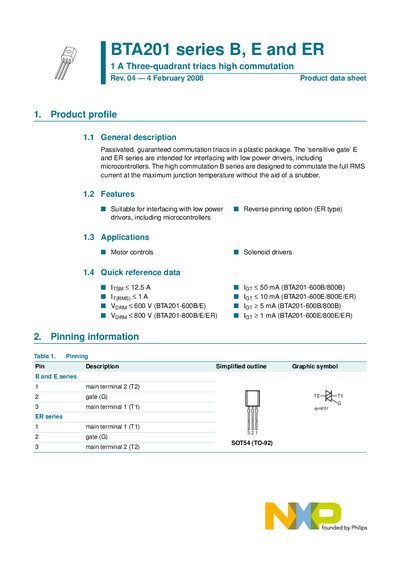

NXP BTA201 Series B/E/ER Triac Datasheet
The BTA201 series triacs are passivated, high‑commutation devices offered in B, E and ER variants. The B version handles full RMS current without a snubber, while the E and ER versions feature a sensitive gate for low‑power driver interfacing.
The document provides detailed electrical limits, thermal characteristics, static and dynamic parameters, pin configurations, ordering information, and legal notices for designers and engineers.
Philips BTA201 specifications
| Peak off‑state voltage (Vprm) | 600 V (BTA201‑600 series) / 800 V (BTA201‑800 series) |
|---|---|
| Maximum RMS on‑state current (I_RMS) | 12.5 A (BTA201‑600 series) / 13.7 A (BTA201‑800 series) |
| Maximum junction temperature (Tj) | 125 °C |
| Maximum storage temperature (Tstg) | +150 °C |
| Gate trigger current (Igt) | 0.1 A (typical) |
| Package type | TO‑92 plastic single‑ended leaded (through‑hole) package, SOT‑54 |
All Philips BTA201 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Which variant of the BTA201 series is suited for low‑power driver interfacing?
The E and ER variants have a sensitive gate and are intended for interfacing with low‑power drivers, including microcontrollers.
What is the maximum peak off‑state voltage for the BTA201‑800 series?
The BTA201‑800 series can withstand a peak off‑state voltage of up to 800 V.
What is the typical RMS on‑state current rating for the BTA201‑600 series?
The BTA201‑600 series is rated for a maximum RMS on‑state current of 12.5 A.
What temperature range can the BTA201 devices be stored at?
They can be stored from –40 °C up to +150 °C.
What package does the BTA201 series use?
The devices are supplied in a TO‑92 plastic single‑ended leaded (through‑hole) package with three leads.
What is the maximum off‑state voltage for the BTA201‑800 series?
The BTA201‑800 series can withstand up to 800 V repetitive peak off‑state voltage.
