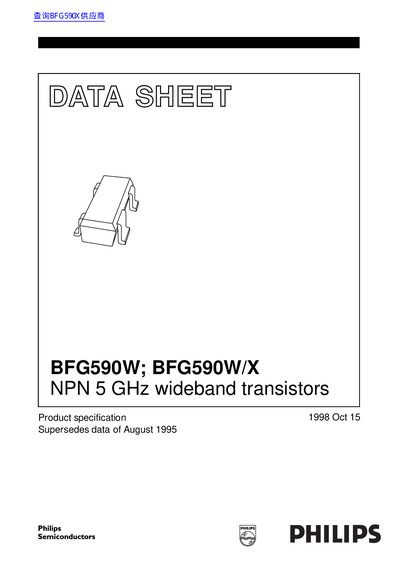

Philips BFG590W; BFG590W/X NPN 5 GHz Wideband Transistors Datasheet
The document is a product specification datasheet for the Philips BFG590W and BFG590W/X transistors. These are NPN silicon planar epitaxial transistors packaged in a 4-pin dual-emitter SOT343N plastic package. The devices are designed for high power gain, low noise figure, and high transition frequency up to 5 GHz.
Read onlinePhilips BFG590W specifications
| Package type | 4-pin dual-emitter SOT343N plastic package |
|---|---|
| Collector-base voltage | 20 V |
| Collector-emitter voltage | 15 V |
| Collector current (DC) | 200 mA |
| Total power dissipation | 500 mW |
| DC current gain | 60 to 250 |
| Transition frequency | 5 GHz |
Source: Philips BFG590W; BFG590W/X NPN 5 GHz Wideband Transistors Datasheet
All Philips BFG590W documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for these transistors?
They are suitable for MATV/CATV amplifiers and RF communications subscriber equipment in the GHz range, as well as class-A, B, and C amplifiers.
From: Philips BFG590W; BFG590W/X NPN 5 GHz Wideband Transistors Datasheet
What is the marking code for the BFG590W/X model?
The marking code for the BFG590W/X model is T2.
From: Philips BFG590W; BFG590W/X NPN 5 GHz Wideband Transistors Datasheet
What are the main features of these transistors?
They offer high power gain, low noise figure, and a high transition frequency.
From: Philips BFG590W/BFG590W/X NPN 5 GHz Wideband Transistors Datasheet
Are these suitable for class-A amplifiers?
Yes, they are ideally suitable for use in class-A, (A)B and C amplifiers.
From: Philips BFG590W/BFG590W/X NPN 5 GHz Wideband Transistors Datasheet
