Start here

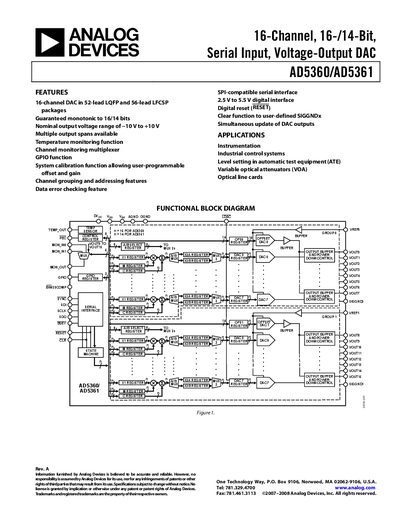

Analog Devices AD5360/AD5361 Product Handbook
The AD5360 and AD5361 are 16‑channel digital‑to‑analog converters available in 52‑lead LQFP and 56‑lead LFCSP packages. They offer buffered voltage outputs with a nominal range of –10 V to +10 V, programmable gain and offset per channel, and a high‑speed 4‑wire SPI‑compatible serial interface up to 50 MHz. Features include temperature monitoring, GPIO, channel grouping, and packet error checking.
The handbook lists detailed electrical specifications, timing characteristics, pin configurations, and typical performance data. It also provides ordering information for the various package options and outlines recommended application areas such as instrumentation, industrial control systems, and automatic test equipment.
Analog Devices AD5360 specifications
| Resolution | 16 bits (AD5360) / 14 bits (AD5361) |
|---|---|
| Relative Accuracy | +4 LSB max (AD5360) |
| Output Voltage Range | –10 V to +10 V nominal |
| Supply Voltage (DVcc) | 2.5 V to 5.5 V |
| Power Dissipation (unloaded) | 245 mW max |
| SPI SCLK Cycle Time | 20 ns min |
| Temperature Coefficient | 5 ppm FSR/°C typ |
All Analog Devices AD5360 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the nominal output voltage range of the AD5360/AD5361?
The nominal output voltage range is –10 V to +10 V.
What is the resolution of the AD5360?
The AD5360 provides 16‑bit resolution.
What is the maximum clock speed for the serial interface?
The serial interface can handle clock speeds of up to 50 MHz.
What is the nominal output voltage range?
The device provides a nominal output voltage range of –10 V to +10 V.
