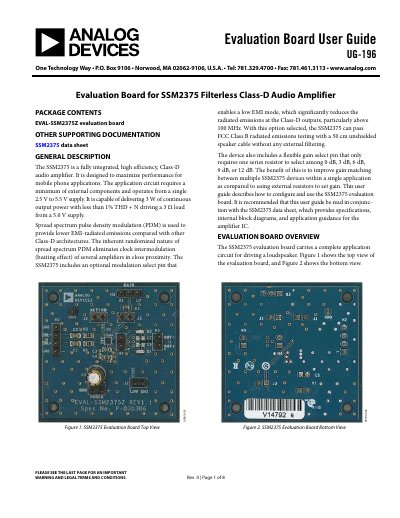

ANALOG DEVICES UG-196 handbook
The SSM2375 is a fully integrated, high efficiency, Class-D audio amplifier designed for mobile phone applications. This user guide describes how to configure and use the SSM2375 evaluation board, which carries a complete application circuit for driving a loudspeaker. It is recommended that this user guide be read in conjunction with the SSM2375 data sheet.
Read onlineAnalog Devices SSM2375 specifications
| Supply Voltage | 2.5 V to 5.5 V |
|---|---|
| Output Power | 3 W |
| Load Impedance | 3 Ω |
| THD + N | less than 1% |
| Shutdown Current | 20 nA |
| Max Supply Current | 0.33 A |
Source: ANALOG DEVICES UG-196 handbook
All Analog Devices SSM2375 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How do I enable the SSM2375 amplifier?
Place a jumper across Pin 1 and Pin 2 of header J1 to put the SSM2375 in normal operation.
What is the recommended cutoff frequency for input coupling capacitors?
For music signals, the cutoff frequency is typically between 20 Hz and 30 Hz.
What supply voltage range does the SSM2375 support?
It operates from 2.5 V to 5.5 V.
What is the shutdown current of the device?
The shutdown current is typically 20 nA.
