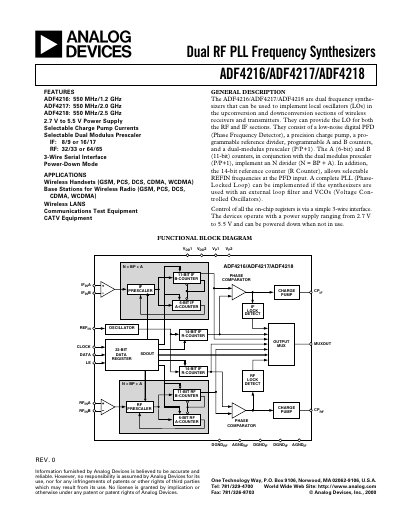

Analog Devices ADF4216/ADF4217/ADF4218 Dual RF PLL Frequency Synthesizers Datasheet
The ADF4216/ADF4217/ADF4218 are dual frequency synthesizers designed to implement local oscillators (LOs) in the upconversion and downconversion sections of wireless receivers and transmitters. These devices consist of a low-noise digital Phase Frequency Detector (PFD), a precision charge pump, programmable reference dividers, A and B counters, and a dual-modulus prescaler. Control of all on-chip registers is managed via a simple 3-wire serial interface.
Read onlineAnalog Devices ADF4217 specifications
| RF Input Frequency (ADF4216) | 0.2/1.2 GHz |
|---|---|
| RF Input Frequency (ADF4217) | 0.2/2.0 GHz |
| RF Input Frequency (ADF4218) | 0.5/2.5 GHz |
| IF Input Frequency | 45/550 MHz |
| Power Supply Range | 2.7 V to 5.5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Package Description | Thin Shrink Small Outline Package (TSSOP) |
Source: Analog Devices ADF4216/ADF4217/ADF4218 Dual RF PLL Frequency Synthesizers Datasheet
All Analog Devices ADF4217 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for these synthesizers?
They are used in wireless handsets, base stations, wireless LANs, communications test equipment, and CATV equipment.
From: Analog Devices ADF4216/ADF4217/ADF4218 Dual RF PLL Frequency Synthesizers Datasheet
What is the maximum allowable prescaler output frequency?
The maximum allowable prescaler output frequency is 165 MHz for the ADF4216 and 200 MHz for the ADF4217 and ADF4218.
From: Analog Devices ADF4216/ADF4217/ADF4218 Dual RF PLL Frequency Synthesizers Datasheet
What are the applications for the ADF4217L/ADF4218L/ADF4219L?
They are used in wireless handsets, base stations, wireless LANs, communications test equipment, and cable TV tuners.
From: Analog Devices ADF4217L/ADF4218L/ADF4219L Dual Low Power Frequency Synthesizers Datasheet
What is the maximum operating frequency of the CMOS counters?
The maximum operating frequency of the CMOS counters is 1155 MHz.
From: Analog Devices ADF4217L/ADF4218L/ADF4219L Dual Low Power Frequency Synthesizers Datasheet
