Start here

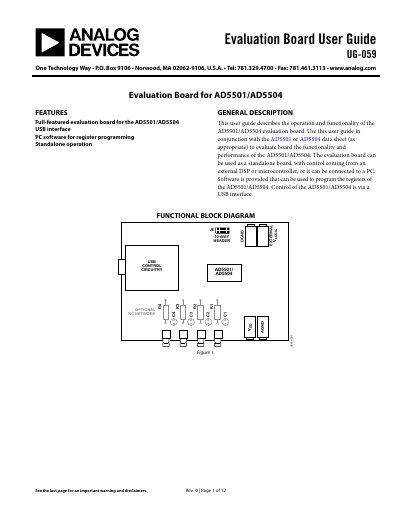

Analog Devices AD5501/AD5504 Evaluation Board User Guide UG-059
The document is a user guide for the Analog Devices AD5501/AD5504 Evaluation Board (UG-059). It details how to operate the board in standalone mode using external control signals or connected to a PC via USB interface for register programming. The guide includes safety requirements, power supply connections, and software usage instructions.
Read onlineAnalog Devices AD5504 specifications
| Resolution | 12 Bits |
|---|---|
| Operating Temperature Range | -40°C to +105°C |
| Output Voltage Range | 0 V to 30 V or 0 V to 60 V |
| Max Clock Speed | 16.667 MHz |
| Supply Voltage (VDD) | 10 V to 62 V |
| Logic Supply Voltage (VDDIO) | 2.3 V to 5.5 V |
| Package Type | 16-lead TSSOP |
| Short-Circuit Current | 2 mA |
Source: Analog Devices AD5504 High Voltage Quad-Channel 12-Bit Voltage Output DAC Datasheet
All Analog Devices AD5504 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How do I switch the board from USB control to standalone operation?
Remove link LK1 to disconnect the USB interface and remove it from the circuit.
From: Analog Devices AD5501/AD5504 Evaluation Board User Guide UG-059
What software is provided with the evaluation kit?
PC software is supplied that allows users to program the registers of the AD5501/AD5504 via the USB interface.
From: Analog Devices AD5501/AD5504 Evaluation Board User Guide UG-059
What is the output voltage range of the AD5504?
The output voltage ranges are programmable via the range select pin (R_SEL) to 0 V to 30 V or 0 V to 60 V.
From: Analog Devices AD5504 High Voltage Quad-Channel 12-Bit Voltage Output DAC Datasheet
Is the AD5504 compatible with SPI?
Yes, the AD5504 has a high speed serial interface compatible with SPI, QSPI, MICROWIRE, and DSP interface standards.
From: Analog Devices AD5504 High Voltage Quad-Channel 12-Bit Voltage Output DAC Datasheet
