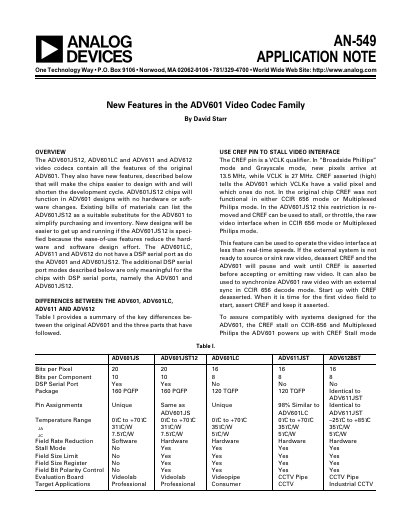

Analog Devices AN-549 Application Note New Features in the ADV601 Video Codec Family
This document outlines the new features available in the ADV601JS12, ADV601LC, ADV611, and ADV612 video codec family members. These chips contain all features of the original ADV601 but offer improvements to simplify design and shorten development cycles. The ADV601JS12 is compatible with existing ADV601 designs, while the other models lack a DSP serial port.
Read onlineAnalog Devices ADV601LC specifications
| Bits per Pixel | 20 (ADV601JS12), 16 (ADV601LC, ADV611, ADV612) |
|---|---|
| Bits per Component | 10 (ADV601JS12), 8 (ADV601LC, ADV611, ADV612) |
| DSP Serial Port | Yes (ADV601JS12), No (ADV601LC, ADV611, ADV612) |
| Package Type | 160 POFP (ADV601JS12), 120 TOFP (ADV601LC, ADV611, ADV612) |
| Temperature Range | 0°C to +70°C (ADV601JS12, ADV601LC, ADV611), -25°C to +85°C (ADV612) |
Source: Analog Devices AN-549 Application Note New Features in the ADV601 Video Codec Family
All Analog Devices ADV601LC documents by type
How to use the product for one specific task, with worked examples.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Can the ADV601JS12 be used in existing ADV601 designs?
Yes, the ADV601JS12 chips will function in ADV601 designs with no hardware or software changes.
From: Analog Devices AN-549 Application Note New Features in the ADV601 Video Codec Family
What is the purpose of the CREF pin in the new chips?
The CREF pin can be used to stall or throttle the raw video interface in CCIR 656 mode or Multiplexed Philips mode.
From: Analog Devices AN-549 Application Note New Features in the ADV601 Video Codec Family
What is the maximum compression ratio of the ADV601LC?
The device can achieve compression ratios up to 350 : 1, with visually loss‑less compression typically at 4 : 1 for natural images.
What is the pixel rate limit for the ADV601LC?
The maximum pixel rate is 13.5 MHz.
