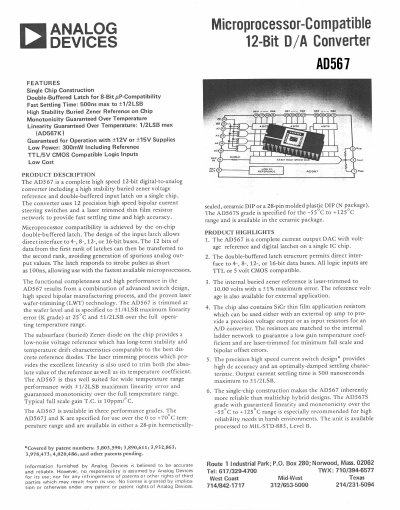

Analog Devices AD567 12-Bit D/A Converter Datasheet
The AD567 is a single-chip, high-speed 12-bit digital-to-analog converter (DAC) that includes a high-stability buried Zener voltage reference and a double-buffered input latch. It is designed for microprocessor compatibility, allowing direct interface to 4-, 8-, 12-, or 16-bit buses. The device uses 12 precision high-speed bipolar current steering switches and a laser-trimmed thin film resistor network to ensure fast settling time and high accuracy.
Read onlineAnalog Devices AD567 specifications
| Resolution | 12-bit |
|---|---|
| Settling Time | 500ns max |
| Linearity Error | +1/2LSB max |
| Power Dissipation | 300mW |
| Operating Temperature Range | 0 to +70°C |
| Supply Voltage | +11.4 to +16.5V |
All Analog Devices AD567 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the settling time of the AD567?
The output current settling time is 500 nanoseconds maximum to +1/2LSB.
Is the AD567 monotonic over temperature?
Yes, the device guarantees monotonicity over the full operating temperature range.
What is the power‑down current consumption of the AD5678?
The device consumes about 200 nA at 3 V and 400 nA at 5 V when powered down.
What is the maximum serial clock rate supported by the AD5678?
The serial interface can operate up to 50 MHz.
