Analog Devices AD1891 Manuals

ManualLib has 3 documents for the Analog Devices AD1891 (Other Electronics): 1 application note, 2 datasheets. Every file can be read online or downloaded as a PDF for free.

Application Note 1Datasheet 2

Key facts

Model
AD1891
Documents
3
Languages
EN
Last added
2012-08-02

Start here

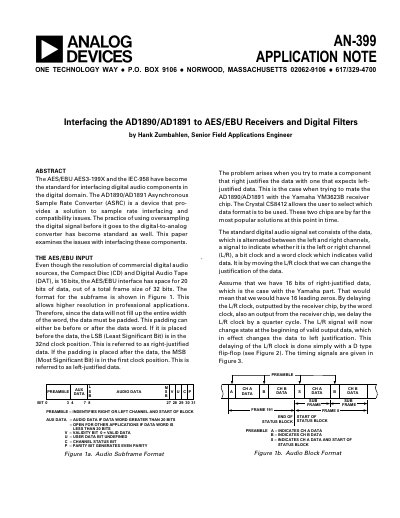

Analog Devices AN-399 Interfacing AD1890/AD1891 to AES Receivers

Analog Devices AN-399 Interfacing AD1890/AD1891 to AES Receivers

Application Note 2 pages · 85 KB · EN

This document addresses sample rate interfacing and compatibility issues between the AD1890/AD1891 Asynchronous Sample Rate Converter (ASRC) and digital audio components using the AES/EBU (AES3-199X) and IEC-958 standards. It specifically examines the challenges of connecting components that use different data justification formats (right-justified vs. left-justified).

Read online

Analog Devices AD1891 specifications

Dynamic Range (AD1890)120 dB
Dynamic Range (AD1891)96 dB
Supply Voltage (VDD)2.7 V – 5.5 V
Supply Current (VDD = 5.0 V)35 mA – 40 mA
Sample Clock Frequency Range8 kHz – 56 kHz
Clock Ratio1:2 – 2:1
Input Word Width (AD1890)4 – 20 bits

Source: Analog Devices AD1890/AD1891 SamplePort Stereo Asynchronous Sample Rate Converter Datasheet

All Analog Devices AD1891 documents by type

Application Note 1

How to use the product for one specific task, with worked examples.

Questions answered in these manuals

What is the standard for interfacing digital audio components in the digital domain?

The AES/EBU AES3-199X and the IEC-958 have become the standard for interfacing digital audio components in the digital domain.

From: Analog Devices AN-399 Interfacing AD1890/AD1891 to AES Receivers

How can data justification be changed from right-justified to left-justified?

Data justification can be changed by delaying the L/R clock outputted by the receiver chip by the word clock, effectively changing the data to left justification.

From: Analog Devices AN-399 Interfacing AD1890/AD1891 to AES Receivers

What is the supply voltage range for the AD1890/AD1891?

The devices operate from a VDD of 2.7 V to 5.5 V.

From: Analog Devices AD1890/AD1891 SamplePort Stereo Asynchronous Sample Rate Converter Datasheet

How much sample‑clock jitter can the AD1890/AD1891 tolerate?

The input and output sample‑clock jitter tolerance is up to 10 ns for less than 1 dB degradation in THD+N.

From: Analog Devices AD1890/AD1891 SamplePort Stereo Asynchronous Sample Rate Converter Datasheet

What is the input sample clock frequency range of the AD1890/AD1891?

The devices accept input sample clocks from 8 kHz up to 56 kHz.

From: Analog Devices AD1890/AD1891 SamplePort Asynchronous Sample Rate Converter Datasheet

How many pins are in the DIP package?

The DIP version uses a 28‑lead plastic package.

From: Analog Devices AD1890/AD1891 SamplePort Asynchronous Sample Rate Converter Datasheet
