Analog Devices AD9837 Manuals

ManualLib has 3 documents for the Analog Devices AD9837 (Other Electronics): 2 datasheets, 1 user manual. Every file can be read online or downloaded as a PDF for free.

Datasheet 2User Manual 1

Key facts

Model
AD9837
Documents
3
Languages
ZH · EN
Last added
2022-09-30

Start here

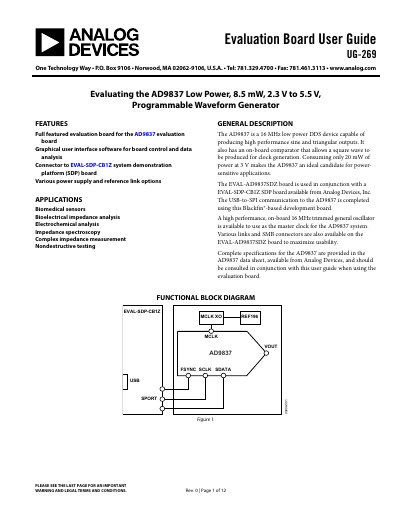

ANALOG DEVICES UG-269 handbook

ANALOG DEVICES UG-269 handbook

User Manual 12 pages · 691 KB · EN

The document provides a user guide for the EVAL-AD9837SDZ evaluation board, which features the AD9837 low power, 8.5 mW, 2.3 V to 5.5 V, programmable waveform generator. It details the board's ability to produce high performance sine and triangular outputs and includes an on-board comparator for square wave generation.

The guide explains how to install and run the graphical user interface software compatible with Windows XP, Vista, and 7. It covers configuring the digital interface, setting external MCLK frequencies, loading frequency and phase registers, and utilizing FSK and PSK functionality.

Read online

Analog Devices AD9837 specifications

Supply Voltage Range2.3 V to 5.5 V
Power Consumption (Typical)8.5 mW at 2.3 V
Maximum Clock Speed16 MHz (Grade B)
Output WaveformsSine, Triangle, Square
Frequency Resolution (16 MHz)0.06 Hz
Operating Temperature Range-40°C to +125°C

Source: Analog Devices AD9837 Programmable Waveform Generator Datasheet

All Analog Devices AD9837 documents by type

Datasheet 2

Ratings, dimensions and ordering codes, for selection and design work.

User Manual 1

Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.

Questions answered in these manuals

What waveforms can the AD9837 generate?

The device is capable of producing sine, triangle, and square wave outputs.

From: Analog Devices AD9837 Programmable Waveform Generator Datasheet

Does the AD9837 have a sleep mode?

Yes, it features a shutdown (sleep) function to minimize power consumption by turning off unused parts.

From: Analog Devices AD9837 Programmable Waveform Generator Datasheet

What applications is the AD9837 evaluation board suitable for?

It is suitable for biomedical sensors, bioelectrical impedance analysis, electrochemical analysis, impedance spectroscopy, complex impedance measurement, and nondestructive testing.

From: ANALOG DEVICES UG-269 handbook

Which operating systems are supported by the evaluation board software?

The software is compatible with Windows XP, Windows Vista, and Windows 7.

From: ANALOG DEVICES UG-269 handbook

What power‑down feature does the AD9837 provide?

The AD9837 includes a sleep function that can power down unused sections, such as the DAC, to minimize current consumption.

From: Analog Devices AD9837 Product Handbook

How is the AD9837 programmed?

It is programmed via a 3‑wire SPI serial interface using FSYNC, SCLK and SDATA signals.

From: Analog Devices AD9837 Product Handbook
