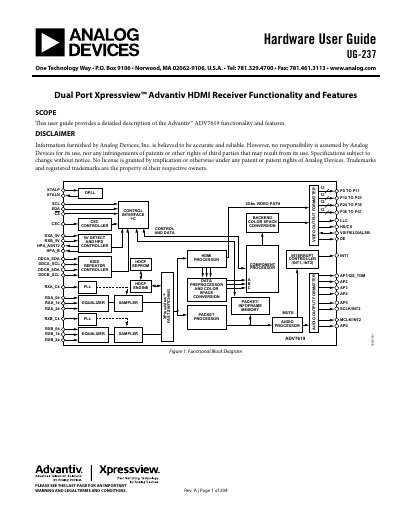

ANALOG DEVICES UG-237 handbook
The document serves as a comprehensive hardware reference for the Advantiv™ ADV7619 Dual Port Xpressview™ HDMI Receiver. It provides detailed descriptions of the chip's functionality and features, including its hardware architecture, interface controls, signal processing flows, and explanations of critical functional blocks such as the DPLL, CEC controller, HDCP engine, and color space conversion modules.
Read onlineAnalog Devices ADV7619 specifications
| Maximum TMDS clock frequency | 297 MHz |
|---|---|
| Supported resolution | up to 4k × 2k (3840 × 2160 at 30 Hz) |
| Package | 128‑lead TQFP_EP, 14 mm × 14 mm |
| Operating temperature range | 0 °C to 70 °C |
All Analog Devices ADV7619 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary function of the ADV7619?
It acts as a dual port HDMI receiver, providing detailed functionality for hardware architecture and signal processing.
Does the manual cover HDCP support?
Yes, the document includes descriptions for the HDCP engine and related content protection features.
What HDMI version does the ADV7619 support?
It supports HDMI 1.4a features.
How many HDMI inputs are available on the ADV7619?
The device provides two HDMI inputs.
