ANALOG DEVICES UG-378 handbook
The document describes the AD5110/AD5112/AD5114 digital potentiometers, including the functional block diagram, pin configuration, pin function descriptions, and typical external connections. It covers operational conditions, I2C command set, shift register timing, and examples for calculating end-to-end resistance and writing/reading registers.
Read onlineAnalog Devices AD5110 specifications
| Number of Channels | Single-channel |
|---|---|
| Memory Type | Nonvolatile memory |
| Operating Voltage Range | 2.3 V to 5.5 V |
| Resistor Tolerance Error | ±8% |
| Maximum Current Density | ±6 mA |
| Logic Voltage Range | 1.8 V to 5.5 V |
| Interface Type | I2C-compatible |

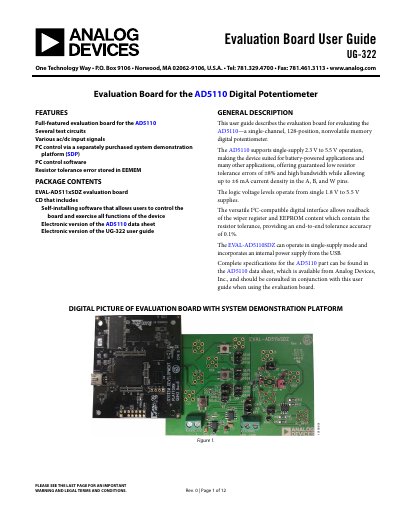

Source: ANALOG DEVICES UG-322 handbook
All Analog Devices AD5110 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
What software is included with the evaluation board?
The kit includes self-installing software that allows users to control the board and exercise all functions of the device.
Which operating systems are supported by the software?
The software is compatible with Windows XP, Windows Vista, and Windows 7 (both 32 and 64 bits).
What is the operating voltage range for VDD?
The VDD supply voltage ranges from 2.3 V to 5.5 V.
How do you calculate the actual end-to-end resistance?
Read the resistor tolerance data from EEPROM, compute the tolerance percentage, and apply it to the nominal resistance; for example, a tolerance of -10.25% on a 10 kΩ resistor gives 8.975 kΩ.
