Key facts
- Brand
- Analog Devices
- Model
- ADV7612
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-02
Start here

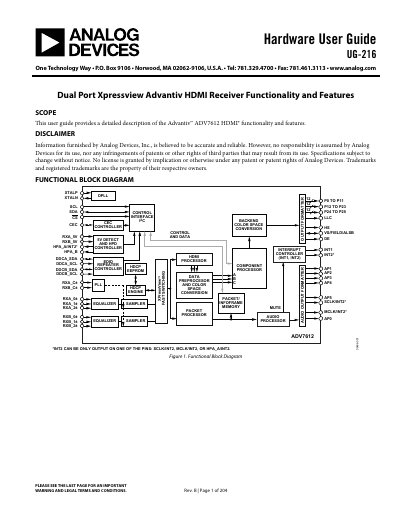

ANALOG DEVICES UG-216 Hardware User Guide
The document serves as a comprehensive reference for the ADV7612 chip, describing its dual-port HDMI receiver capabilities. It covers functional block diagrams, register access conventions, and detailed descriptions of hardware features including video processing, audio handling, and HDCP support.
Key sections include instructions on configuring primary and background ports, managing power-down modes, setting up CEC (Consumer Electronics Control), and utilizing the internal E-EDID repeater controller. The guide also provides specific configuration details for color space conversion, pixel output formats, and various interrupt mechanisms.
Analog Devices ADV7612 specifications
| HDMI Inputs | 2 HDMI inputs |
|---|---|
| HDMI Output | 1 HDMI output |
| Communication Interface | RS-232 or USB interface |
| Processor | Blackfin ADSP-BF524 |
Source: Analog Devices ADV7612/ADV7511 HDMI Repeater Evaluation Board User Guide UG-295
All Analog Devices ADV7612 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the main purpose of this document?
It provides a detailed description of the Advantiv™ ADV7612 HDMI® functionality and features.
What is the primary function of the ADV7612?
The device is a Dual Port Xpressview HDMI Receiver.
What chips does this evaluation board support?
It is used for evaluating the ADV7612 HDMI receiver and/or the ADV7511 HDMI transmitter.
From: Analog Devices ADV7612/ADV7511 HDMI Repeater Evaluation Board User Guide UG-295
Does this board support HDCP?
Yes, an HDCP-enabled version (EVAL-ADV7612-7511) is available for licensees, while a non-HDCP version (EVAL-ADV7612-7511P) does not support it.
From: Analog Devices ADV7612/ADV7511 HDMI Repeater Evaluation Board User Guide UG-295
