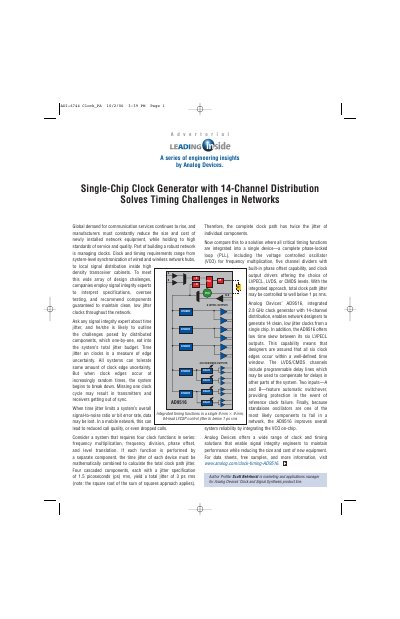

ANALOG DEVICES Leading Inside Advertorials: Single-Chip Clock Generator with 14-Channel Distribution Solves Timing Challenges in Networks Manual
Global demand for communication services requires manufacturers to reduce the size and cost of network equipment while maintaining high standards. Managing clocks is part of building a robust network, requiring system-level synchronization and local signal distribution inside transceiver cabinets.
The Analog Devices AD9516 is an integrated 2.8 GHz clock generator with 14-channel distribution that enables designers to generate 14 clean, low jitter clocks from a single chip. It features built-in phase offset capability and programmable delay lines for LVDS/CMOS channels.
Analog Devices AD9516 specifications
| VCO Frequency | up to 2.95 GHz |
|---|---|
| Total Jitter | < 0.5 ps rms |
| Output Channels | 14 |
| Output Logic | LVPECL, LVDS/CMOS |
| Reference Inputs | Two |
| Output Frequency Range | 8 kHz to 750 MHz |
| Loop Bandwidth | < 1 Hz |
| Package | 64-lead LFCSP |
Source: Analog Devices AD9516/AD9549 Clock Generator Product Leaflet
All Analog Devices AD9516 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Analog Devices AD9516-5 14-Output Clock Generator Datasheet 76 p
- Analog Devices AD9516-4 Clock Generator Datasheet 80 p
- Analog Devices AD9516-3 Clock Generator Datasheet 80 p
- Analog Devices AD9516-2 Product Handbook 80 p
- Analog Devices AD9516-1 Datasheet 80 p
- Analog Devices AD9516-0 Handbook 84 p
- Analog Devices AD9516-1 Clock Generator Handbook 84 p
- Analog Devices AD9516-2 Clock Generator Handbook 84 p
- Analog Devices AD9516-3 Clock Generator Datasheet 84 p
- Analog Devices AD9516-4 Clock Generator Datasheet 84 p
Questions answered in these manuals
What is the maximum frequency of the AD9516 clock generator?
The AD9516 is a 2.8 GHz clock generator.
How many LVDS or CMOS outputs does the AD9516 provide?
The device offers four LVDS/CMOS outputs.
What are the key features of the AD9549?
It is a two input clock generator with extended holdover functionality and a programmable loop filter to clean jitter.
From: Analog Devices AD9516/AD9549 Clock Generator Product Leaflet
Does the AD9516 support automatic reference switching?
Yes, it features automatic switching for reference monitoring.
From: Analog Devices AD9516/AD9549 Clock Generator Product Leaflet
Can the LVDS outputs be used as CMOS outputs?
Yes, each LVDS output can be reconfigured as two 250 MHz CMOS outputs.
From: Analog Devices AD9516-5 14-Output Clock Generator Datasheet
What reference input frequencies are supported?
The device accepts LVPECL, LVDS, or CMOS references up to 250 MHz.
From: Analog Devices AD9516-5 14-Output Clock Generator Datasheet
