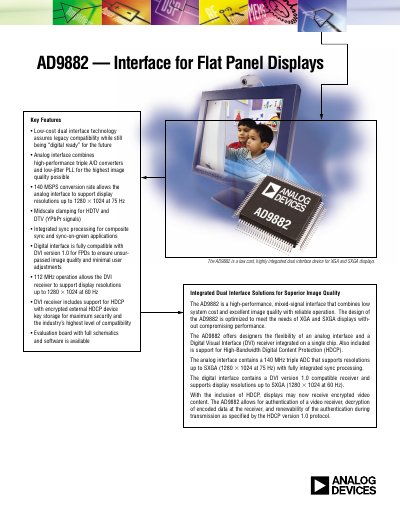

Analog Devices AD9882 Datasheet
The AD9882 is a high-performance, mixed-signal interface chip designed for XGA and SXGA displays. It integrates a low-cost analog interface with a Digital Visual Interface (DVI) receiver on a single chip. The device supports High-Bandwidth Digital Content Protection (HDCP) for secure video content transmission.
Read onlineAnalog Devices AD9882 specifications
| Conversion Rate | 140 MSPS |
|---|---|
| Display Resolution (Analog) | 1280 x 1024 at 75 Hz |
| Display Resolution (Digital) | 1280 x 1024 at 60 Hz |
| Digital Interface Standard | DVI version 1.0 |
| Operating Temperature | 0°C to 70°C |
| Power Supply | 3.3 V |
Source: Analog Devices AD9882 Datasheet
All Analog Devices AD9882 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What display resolutions does the AD9882 support?
The analog interface supports up to 1280 x 1024 at 75 Hz, and the digital interface supports up to 1280 x 1024 at 60 Hz.
Does the AD9882 support HDCP?
Yes, the digital interface includes support for HDCP with encrypted external HDCP device key storage.
What is the maximum pixel clock frequency of the AD9882A?
The AD9882A can generate a pixel clock up to 140 MHz.
What analog input voltage range does the AD9882A support?
It accepts an analog input voltage from 0.5 V to 1.0 V (peak‑to‑peak).
