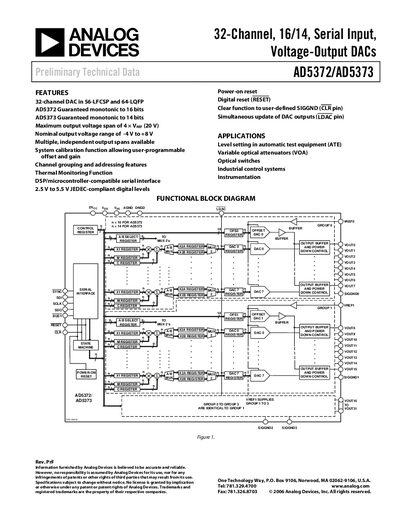

Analog Devices AD5372/AD5373 32-Channel DAC Datasheet
The AD5372 and AD5373 are 32-channel Digital-to-Analog Converters (DACs) available in 16-bit or 14-bit resolution. These devices feature buffered voltage outputs with a span four times the reference voltage, allowing for multiple independent output spans. The chips include system calibration functions to adjust offset and gain, as well as thermal monitoring capabilities.
Read onlineAnalog Devices AD5372 specifications
| Output Voltage Span | 4 x Vref (20 V) |
|---|---|
| Nominal Output Range | -4V to +8 V |
| Number of Channels | 32 |
| Package Options | 56-LFCSP and 64-LQFP |
| Clock Speed | up to 50 MHz |
Source: Analog Devices AD5372/AD5373 32-Channel DAC Datasheet
All Analog Devices AD5372 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output voltage span?
The device provides a maximum output voltage span of 4 times the reference voltage (20 V).
Can the DAC outputs be updated simultaneously?
Yes, all outputs can be updated simultaneously by taking the LDAC input low.
What is the resolution of the AD5372 and AD5373?
The AD5372 provides 16‑bit resolution while the AD5373 provides 14‑bit resolution.
What supply voltage range does the device operate over?
The device operates from 2.5 V to 5.5 V for DVce and from 9 V to 16.5 V for Vop.
What is the maximum SPI clock speed supported by the AD5372/AD5373?
The serial interface can handle clock speeds of up to 50 MHz.
