Analog Devices SSM2377 Manuals

ManualLib has 3 documents for the Analog Devices SSM2377 (Other Electronics): 2 datasheets, 1 user manual. Every file can be read online or downloaded as a PDF for free.

Datasheet 2User Manual 1

Key facts

Model
SSM2377
Documents
3
Languages
ZH · EN
Last added
2022-09-21

Start here

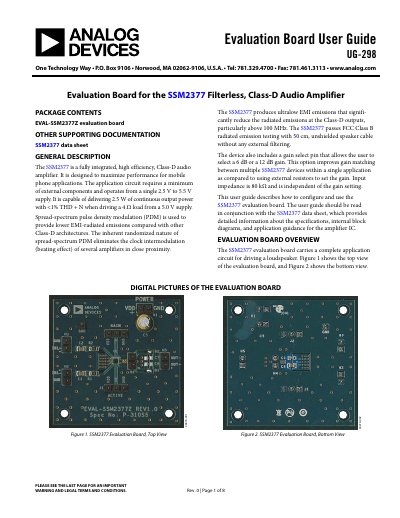

ANALOG DEVICES UG-298 handbook

ANALOG DEVICES UG-298 handbook

User Manual 8 pages · 289 KB · EN

This document is the User Guide (UG-298) for the SSM2377 Evaluation Board. It provides instructions on configuring the board's input, shutdown, gain, output, and power supply settings. The guide also details component selection for external filtering and outlines a testing procedure for performance verification.

Read online

Analog Devices SSM2377 specifications

Output Power (8 Ω, 1 kHz, 1% THD)1.41 W at 5.0 V
Signal-to-Noise Ratio>100 dB
Power Supply Rejection Ratio80 dB
Input Impedance80 kΩ
Shutdown Current100 nA
Operating Temperature Range-40°C to +85°C
Package Type9-pin 1.2 mm x 1.2 mm WLCSP

Source: Analog Devices SSM2377 Filterless High-Efficiency Single-Channel 2.5 W D-Class Audio Amplifier Datasheet

All Analog Devices SSM2377 documents by type

User Manual 1

Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.

Questions answered in these manuals

What is the supply voltage range for the SSM2377?

The device supports a single power supply ranging from 2.5 V to 5.5 V.

From: Analog Devices SSM2377 Filterless High-Efficiency Single-Channel 2.5 W D-Class Audio Amplifier Datasheet

What are the available gain settings?

The gain can be configured for either 6 dB or 12 dB by connecting the GAIN pin to VDD or GND.

From: Analog Devices SSM2377 Filterless High-Efficiency Single-Channel 2.5 W D-Class Audio Amplifier Datasheet

How do I enable the SSM2377 amplifier?

Place a jumper between the SD and VDD header pins on the ACTIVE header (J1).

From: ANALOG DEVICES UG-298 handbook

How do I shut down the amplifier?

Place a jumper between the SD and GND header pins on the ACTIVE header (J1).

From: ANALOG DEVICES UG-298 handbook

What does the pop‑and‑click suppression feature do?

It reduces output voltage transients when the shutdown pin is toggled, limiting audible pops to as low as 10 mV.

From: Analog Devices SSM2377 Class‑D Audio Amplifier Product Handbook

What is the typical shutdown current of the device?

The shutdown current is typically 100 nA.

From: Analog Devices SSM2377 Class‑D Audio Amplifier Product Handbook
