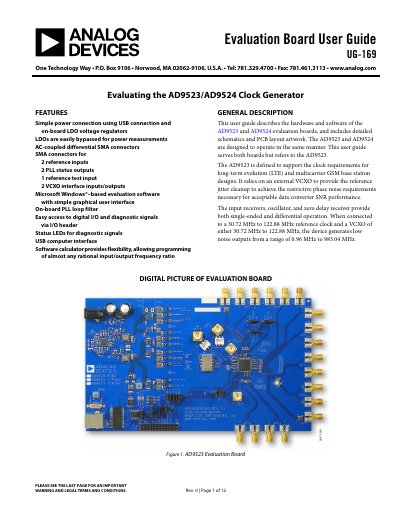

ANALOG DEVICES UG-169 handbook
This document serves as the user guide for the AD9523 and AD9524 evaluation boards. It describes the hardware and software components, including detailed schematics and PCB layout artwork. The guide is applicable to both boards but primarily refers to the AD9523.
Read onlineAnalog Devices AD9524 specifications
| Output frequency range | <1 MHz to 1 GHz |
|---|---|
| Start‑up frequency accuracy | <+100 ppm |
| Input‑to‑output edge timing | <+150 ps |
| Absolute output jitter (122.88 MHz) | <200 fs |
| Integration range | 12 kHz to 20 MHz |
| Distribution phase‑noise floor | ‑160 dBc/Hz |
| Supply voltage (PLL1) | 3.3 V |
| Typical power dissipation (full load) | 571‑680 mW |
Source: Analog Devices AD9524 Datasheet
All Analog Devices AD9524 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What frequency range does the AD9523 generate when connected to a specific reference clock?
When connected to a 30.72 MHz to 122.88 MHz reference clock and a VCXO of either 30.72 MHz to 122.88 MHz, the device generates low noise outputs from a range of 0.96 MHz to 983.04 MHz.
What is the required amplitude setting for the signal generator connected to REF A SMA Connector J9?
An amplitude setting of 6 dBm is sufficient when connecting a signal generator to REF A SMA Connector J9.
What is the output frequency range of the AD9524?
The AD9524 can generate output frequencies from less than 1 MHz up to 1 GHz.
How many configurable output standards does the AD9524 support?
It provides six outputs that can be configured as LVPECL, LVDS, HSTL, or LVCMOS.
