Key facts
- Brand
- Analog Devices
- Model
- AD9552
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-02
Start here

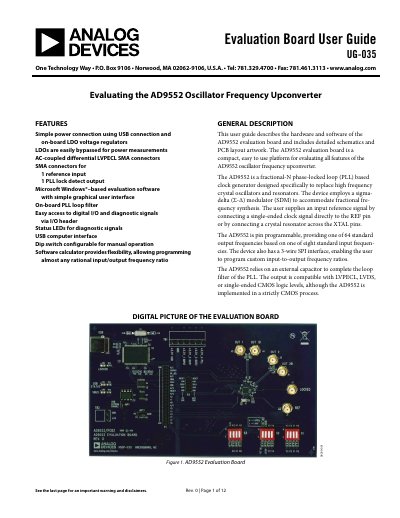

ANALOG DEVICES UG-035 handbook
This document provides a user guide for the Analog Devices AD9552 evaluation board. It details the hardware features, including USB power connections, signal connectors, and the ability to bypass the USB power supply for external power measurements. The guide also covers the installation and usage of the Microsoft Windows-based evaluation software.
Read onlineAnalog Devices AD9552 specifications
| Supply Voltage | 3.135 V – 3.465 V (typ 3.30 V) |
|---|---|
| Total Current Consumption | 149 mA – 169 mA (max output, both channels active) |
| Output Frequency Range | Up to 900 MHz |
| RMS Jitter | <0.5 ps |
| Operating Temperature Range | ‑40 °C to +85 °C |
All Analog Devices AD9552 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the AD9552 evaluation board used for?
It is a compact platform for evaluating all features of the AD9552 oscillator frequency upconverter.
How should unused output connectors be terminated?
A 50 Ω termination should be placed on all enabled unused outputs.
What is the supply voltage range for the AD9552?
The device operates from 3.135 V to 3.465 V, with a typical value of 3.30 V.
How can the output frequency be programmed?
The AD9552 provides a 3‑wire SPI interface that allows programming of custom input‑to‑output frequency ratios, in addition to 64 preset ratios selectable via pins.
