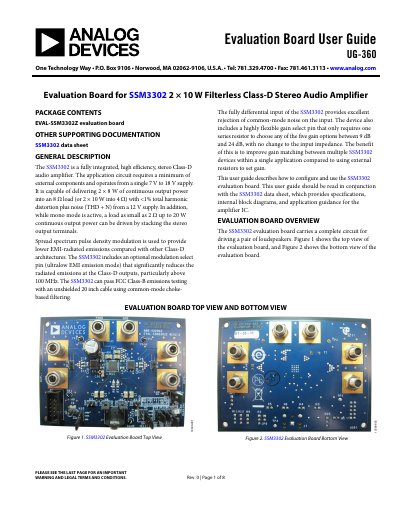

ANALOG DEVICES UG-360 handbook
The SSM3302 is a fully integrated, high efficiency, stereo Class-D audio amplifier. The application circuit requires a minimum of external components and operates from a single 7 V to 18 V supply. It is capable of delivering 2 × 8 W of continuous output power into an 8 Ω load (or 2 × 10 W into 4 Ω) with <1% total harmonic distortion plus noise (THD + N) from a 12 V supply.
Read onlineAnalog Devices SSM3302 specifications
| Supply Voltage | 7 V to 18 V |
|---|---|
| Output Power (Stereo) | 2 × 8 W into 8 Ω |
| Output Power (Stereo) | 2 × 10 W into 4 Ω |
| Total Harmonic Distortion | <1% |
| Output Power (Mono) | 20 W into 2 Ω |
| Gain Range | 9 dB to 24 dB |
Source: ANALOG DEVICES UG-360 handbook
All Analog Devices SSM3302 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating supply voltage range?
The amplifier operates from a single 7 V to 18 V supply.
How do I configure the amplifier for mono mode?
Use a jumper on H11 to connect the center pin to AVDD.
What supply voltage range does the SSM3302 support?
It operates from a single supply voltage between 7 V and 18 V.
From: Analog Devices SSM3302 Stereo Audio Amplifier Datasheet
How low is the shutdown current of the device?
The shutdown current is typically 10 pA.
From: Analog Devices SSM3302 Stereo Audio Amplifier Datasheet
