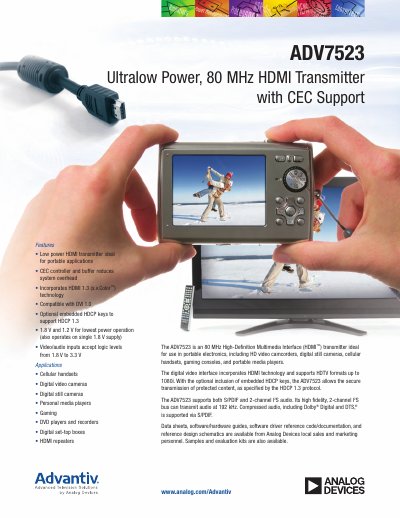

Analog Devices ADV7523 Ultralow Power 80 MHz HDMI Transmitter Datasheet
The ADV7523 is an 80 MHz High-Definition Multimedia Interface (HDMI) transmitter designed for portable electronics, including HD video camcorders, digital still cameras, cellular handsets, and gaming consoles. It supports HDTV formats up to 1080i and features optional embedded HDCP keys to support the HDCP 1.3 protocol for secure content transmission.
The device supports both S/PDIF and 2-channel I2S audio, capable of transmitting audio at 192 kHz. It includes an on-chip microprocessor unit (MPU) with an I2C master to perform EDID reading and HDCP operations. The ADV7523 operates on 1.8 V and 1.2 V supplies and is compatible with the AD80216 HDMI companion chip.
Analog Devices ADV7523 specifications
| Operating Frequency | 80 MHz |
|---|---|
| Supported Video Formats | 480i to 1080i |
| Audio Sampling Rate | 192 kHz |
| Supply Voltage | 1.8 V and 1.2 V |
Source: Analog Devices ADV7523 Ultralow Power 80 MHz HDMI Transmitter Datasheet
All Analog Devices ADV7523 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum video resolution supported?
The ADV7523 supports HDTV formats up to 1080i.
From: Analog Devices ADV7523 Ultralow Power 80 MHz HDMI Transmitter Datasheet
Does the ADV7523 support HDCP?
Yes, with the optional inclusion of embedded HDCP keys, it supports the HDCP 1.3 protocol.
From: Analog Devices ADV7523 Ultralow Power 80 MHz HDMI Transmitter Datasheet
What video resolutions does the ADV7523A support?
It supports all video and graphics resolutions from 480i up to 1080i.
From: Analog Devices ADV7523A HDMI/DVI Transmitter Datasheet
Does the ADV7523A support HDCP protection?
Yes, optional embedded HDCP keys enable support for HDCP 1.3.
From: Analog Devices ADV7523A HDMI/DVI Transmitter Datasheet
