Start here

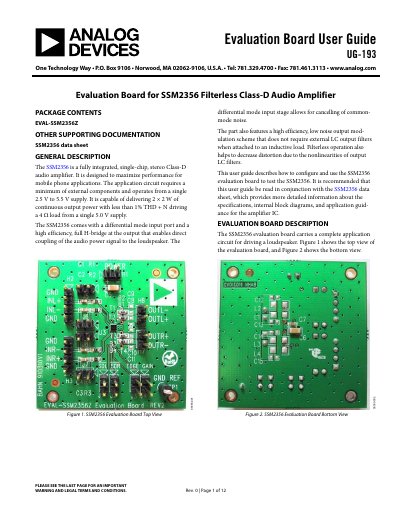

Analog Devices UG-193 SSM2356 Evaluation Board User Guide
The document provides instructions for configuring the SSM2356 Evaluation Board, covering input/output connections, gain selection via jumpers, emissions limiting modes, and power supply requirements. It details the hardware layout, including header functions and component placement guidelines to minimize EMI.
A step-by-step 'Getting Started' section guides users through setting up the board for testing. The guide also outlines specific parameters to test, such as electromagnetic interference (EMI), signal-to-noise ratio, output noise, maximum power, distortion, and efficiency.
Analog Devices SSM2356 specifications
| Supply Voltage Range | 2.5 V to 5.5 V |
|---|---|
| Total Harmonic Distortion + Noise | < 1% |
| Shutdown Current (per channel) | ~20 nA |
| Peak Current (8 Ω, 5V) | approx. 0.33 A |
| Gain Options | 6 dB or 18 dB |
Source: Analog Devices UG-193 SSM2356 Evaluation Board User Guide
All Analog Devices SSM2356 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How do I select the amplifier gain on the board?
Insert a jumper across header J3 for 18 dB gain, or remove the jumper from J3 to set the gain to 6 dB.
From: Analog Devices UG-193 SSM2356 Evaluation Board User Guide
What are the power supply requirements?
The board accepts a DC power supply between 2.5 V and 5.5 V with correct polarity.
From: Analog Devices UG-193 SSM2356 Evaluation Board User Guide
What is the output power into a 4 Ω load?
The SSM2356 delivers 2 W per channel into a 4 Ω load at a 5 V supply with less than 1 % THD+N.
From: Analog Devices SSM2356 Audio Amplifier Products Handbook
How is gain configured on the SSM2356?
Gain is set via the GAIN pin, allowing a selection of either 6 dB or 18 dB.
From: Analog Devices SSM2356 Audio Amplifier Products Handbook
