Key facts
- Brand
- STMicroelectronics
- Model
- TS27M2
- Category
- Other Electronics
- Documents
- 3
- Languages
- EN
- Last added
- 2012-08-08
Start here

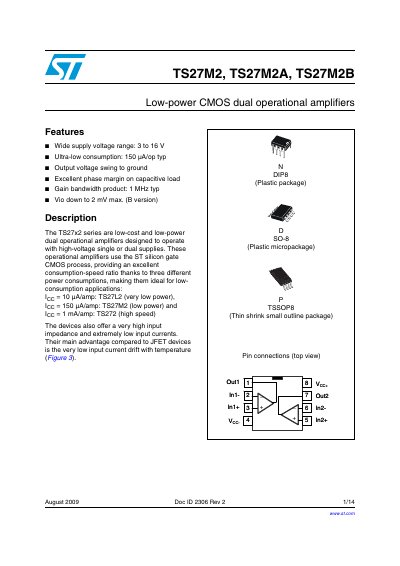

STMicroelectronics TS27M2/TS27M2A/TS27M2B Low-Power CMOS Dual Operational Amplifiers Datasheet
The TS27x2 series are low-cost, low-power dual operational amplifiers designed to operate with high-voltage single or dual supplies. They utilize the ST silicon gate CMOS process to provide an excellent consumption-speed ratio, making them ideal for low-consumption applications. The document covers three specific variants: TS27L2 (very low power), TS27M2 (low power), and TS272 (high speed).
Read onlineSTMicroelectronics TS27M2 specifications
| Supply voltage range | 3 to 16 V |
|---|---|
| Typical consumption (TS27M2) | 150 µA/op |
| Input offset voltage max (TS27B) | 3 mV |
| Gain bandwidth product | 1 MHz typ |
Source: STMicroelectronics TS27M2/TS27M2A/TS27M2B Low-Power CMOS Dual Operational Amplifiers Datasheet
All STMicroelectronics TS27M2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical supply current per amplifier?
The typical supply current per amplifier is 150 µA when there is no load and the output voltage is 5 V.
From: STMicroelectronics TS27M2/TS27M2A/TS27M2B Low-Power CMOS Dual Operational Amplifiers Datasheet
What is the low power consumption of the TS27M2C?
The supply current per amplifier is typically 150 pA at 25°C with no load.
From: STMicroelectronics TS27M2C Precision Low Power CMOS Dual Operational Amplifiers Datasheet
What are the available temperature ranges for this series?
The series offers three options: +70°C to -40°C/+125°C and -55°C to +125°C.
From: STMicroelectronics TS27M2C Precision Low Power CMOS Dual Operational Amplifiers Datasheet
What is the typical supply current per amplifier?
The typical supply current for no load and Vo = 5V is 150 pA.
From: STMicroelectronics TS27M2C Precision Low Power CMOS Dual Operational Amplifiers Datasheet
Can the output voltage swing to ground?
Yes, the output voltage can swing to ground.
From: STMicroelectronics TS27M2C Precision Low Power CMOS Dual Operational Amplifiers Datasheet
