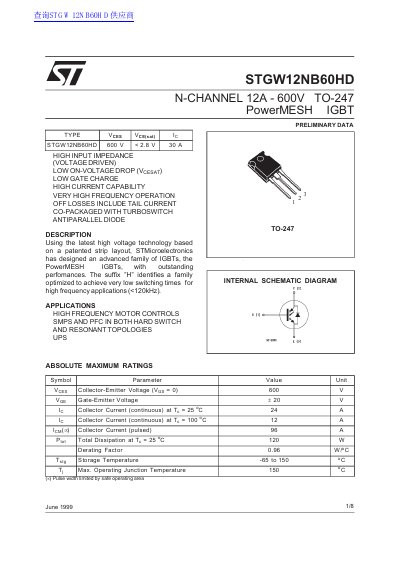

STMicroelectronics STGW12NB60HD IGBT Datasheet
This document describes the STGW12NB60HD, an N-channel 12A 600V IGBT from STMicroelectronics utilizing PowerMESH technology. The device is optimized for high-frequency applications under 120kHz and is co-packaged with a TurboSwitch antiparallel diode. It is designed for use in high-frequency motor controls, SMPS, PFC, and UPS systems.
Read onlineSTMicroelectronics STGW12NB60H specifications
| Gate-Emitter Voltage | + 20 V |
|---|---|
| Collector Current (continuous) at 25°C | 24 A |
| Collector Current (continuous) at 100°C | 12 A |
| Collector Current (pulsed) | 96 A |
| Total Dissipation at 25°C | 120 W |
| Package Type | TO-247 |
| Operating Junction Temperature | 150 °C |
| Switching Frequency | <120kHz |
All STMicroelectronics STGW12NB60H documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for the STGW12NB60HD?
The device is suitable for high frequency motor controls, SMPS and PFC in both hard switch and resonant topologies, and UPS systems.
Is the STGW12NB60HD co-packaged with a diode?
Yes, the IGBT is co-packaged with a TurboSwitch antiparallel diode.
What are the recommended applications for this IGBT?
It is designed for high frequency motor controls and SMPS and PFC in both hard switch and resonant topologies.
From: STMicroelectronics STGW12NB60H IGBT Preliminary Data Sheet
What is the maximum switching frequency?
The device is optimized for high frequency applications less than 120kHz.
From: STMicroelectronics STGW12NB60H IGBT Preliminary Data Sheet
