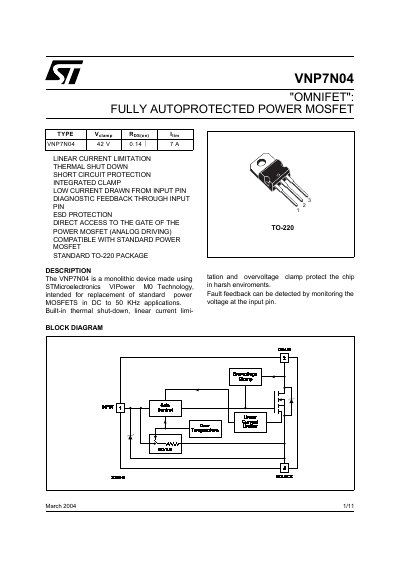

STMicroelectronics VNP7N04 Fully Autoprotected Power MOSFET Datasheet
The VNP7N04 is a monolithic device made using STMicroelectronics ViPower technology, intended for replacement of standard power MOSFETs in DC to 50 KHz applications. It features built-in thermal shut-down, linear current limitation, and overvoltage clamp protection.
Read onlineSTMicroelectronics VNP7N04 specifications
| Drain-source Voltage (Vin = 0) | Internally Clamped Vv |
|---|---|
| Input Voltage | 18 V |
| Reverse DC Output Current | -7 A |
| Storage Temperature | -55 to 150 °C |
| Overtemperature Shutdown | 150 °C |
| Overtemperature Reset | 135 °C |
Source: STMicroelectronics VNP7N04 Fully Autoprotected Power MOSFET Datasheet
All STMicroelectronics VNP7N04 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum input voltage?
The absolute maximum rating for the Input Voltage is 18 V.
From: STMicroelectronics VNP7N04 Fully Autoprotected Power MOSFET Datasheet
How does the device protect against overtemperature?
Overtemperature cutout occurs at a minimum of 150 °C, and the device restarts when the temperature falls below 135 °C.
From: STMicroelectronics VNP7N04 Fully Autoprotected Power MOSFET Datasheet
What is the maximum storage temperature for these MOSFETs?
The devices are rated for storage temperatures from –55 °C up to 150 °C.
What is the typical turn‑on delay time at a 15 V gate drive and 3.5 A load?
The typical turn‑on delay time is 50 ns.
