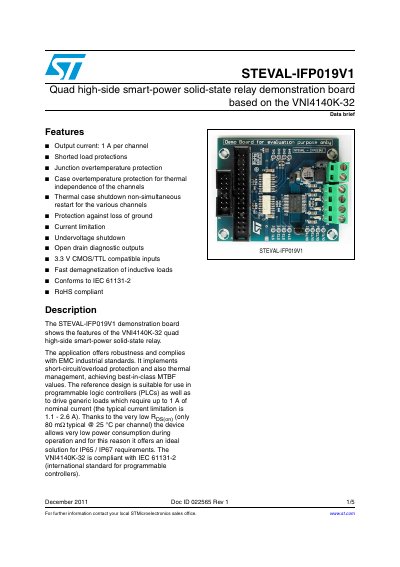

STMicroelectronics STEVAL-IFP019V1 Quad High-Side Smart-Power SSR Data Brief
The STEVAL-IFP019V1 is a demonstration board based on the VNI4140K-32 quad high-side smart-power solid-state relay. It is designed to show the features of the device, offering robustness and compliance with EMC industrial standards. The board implements short-circuit and overload protection, as well as thermal management, achieving best-in-class MTBF values. It is suitable for use in programmable logic controllers (PLCs) and for driving generic loads requiring up to 1 A of nominal current.
Read onlineSTMicroelectronics STEVAL-IFP019V1 specifications
| Output current | 1 A per channel |
|---|---|
| Input voltage compatibility | 3.3 V CMOS/TTL |
| Typical Rpgion | 80 mQ @ 25 °C per channel |
| Compliance standard | IEC 61131-2 |
| RoHS status | Compliant |
Source: STMicroelectronics STEVAL-IFP019V1 Quad High-Side Smart-Power SSR Data Brief
All STMicroelectronics STEVAL-IFP019V1 documents by type
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the typical current limitation of the device?
The typical current limitation is 1.1 - 2.6 A.
From: STMicroelectronics STEVAL-IFP019V1 Quad High-Side Smart-Power SSR Data Brief
Is the demonstration board RoHS compliant?
Yes, the STEVAL-IFP019V1 is RoHS compliant.
From: STMicroelectronics STEVAL-IFP019V1 Quad High-Side Smart-Power SSR Data Brief
What is the purpose of the STEVAL-IFP019V1 demonstration board?
It allows the evaluation of VNI4140K-32 features such as embedded self-protections, power-handling capabilities, operation, diagnostic feedback, thermal behavior, and conformity to IEC standards.
What are the main electrical characteristics of the STEVAL-IFP019V1?
The board features four output channels (4 x 1 A), four input channels, four feedback channels for diagnostics, and operates with a Vcc supply voltage range of 10.5V to 36 V.
