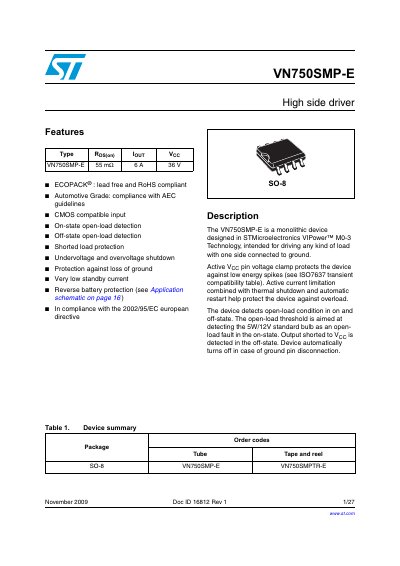

STMicroelectronics VN750SMP-E High Side Driver Datasheet
The VN750SMP-E is a monolithic high-side driver designed in STMicroelectronics VIPower™ MO0-3 Technology. It is intended for driving loads with one side connected to ground and includes active voltage clamps on the Voc pin to protect against low energy spikes.
The device features comprehensive protection mechanisms, including undervoltage and overvoltage shutdown, reverse battery protection, and detection of open-load conditions in both on and off states. It also detects when the output is shorted to Voc in the off-state and automatically turns off if the ground pin is disconnected.
STMicroelectronics VN750 specifications
| Operating supply voltage (Vcc) | 5.5 to 36 V |
|---|---|
| On-state resistance (Ron) | Typical 55 mΩ |
| Output current limit | Internally limited |
| Reverse DC output current | -6 A |
| Undervoltage shutdown threshold | 3 to 5.5 V |
| Overvoltage shutdown threshold | 36 V |
| Input hysteresis voltage | 0.5 V |
Source: STMicroelectronics VN750SMP-E High Side Driver Datasheet
All STMicroelectronics VN750 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating supply voltage?
The device operates with a supply voltage between 8 V and 36 V.
From: STMicroelectronics VN750SMP-E High Side Driver Datasheet
Does the device detect open-load conditions?
Yes, it detects open-load conditions in both on and off states.
From: STMicroelectronics VN750SMP-E High Side Driver Datasheet
What is the maximum output current of the VN750PS-E?
The device features an internally limited DC output current of up to 6 A.
From: STMicroelectronics VN750PS-E High-Side Driver Datasheet
Does the VN750PS-E include open-load detection?
Yes, it detects open load conditions in both on and off-states.
From: STMicroelectronics VN750PS-E High-Side Driver Datasheet
What is the maximum DC supply voltage for this device?
The maximum DC supply voltage (Voc) is 40 V.
What is the typical on-state resistance when the output current is 2 A?
The typical on-state resistance (Ron) is 120 mΩ at an output current of 2 A.
