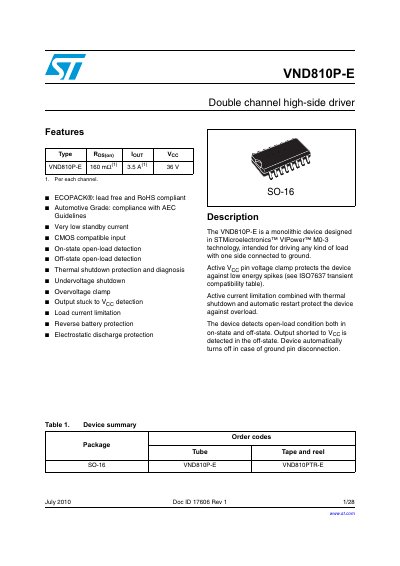

STMicroelectronics VND810P-E Double Channel High-Side Driver Datasheet
The VND810P-E is a monolithic double channel high-side driver designed in STMicroelectronics VIPower M0-3 technology. It is intended for driving loads with one side connected to ground and features active VCC pin voltage clamping to protect against low energy spikes.
Read onlineSTMicroelectronics VND810P-E specifications
| Operating supply voltage | 5.5 to 36 V |
|---|---|
| Output current | 3.5 A (typical) |
| Package type | SO-16 |
| Undervoltage shutdown | 3 to 5.5 V |
| Overvoltage shutdown | 36 V |
| Shutdown temperature | 150 to 200 °C |
| Current limitation | 3.5 to 7.5 A |
Source: STMicroelectronics VND810P-E Double Channel High-Side Driver Datasheet
All STMicroelectronics VND810P-E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the VND810P-E RoHS compliant?
Yes, the device is ECOPACK compliant, meaning it is lead free and RoHS compliant.
From: STMicroelectronics VND810P-E Double Channel High-Side Driver Datasheet
Does the device have open-load detection?
Yes, it detects open-load conditions both in on-state and off-state.
From: STMicroelectronics VND810P-E Double Channel High-Side Driver Datasheet
Does the device detect open loads in both states?
Yes, it detects open-load conditions in both the on and off-state.
From: STMicroelectronics VND810PEP-E Double Channel High-Side Driver Datasheet
What is the maximum junction operating temperature?
The junction operating temperature is internally limited.
From: STMicroelectronics VND810PEP-E Double Channel High-Side Driver Datasheet
