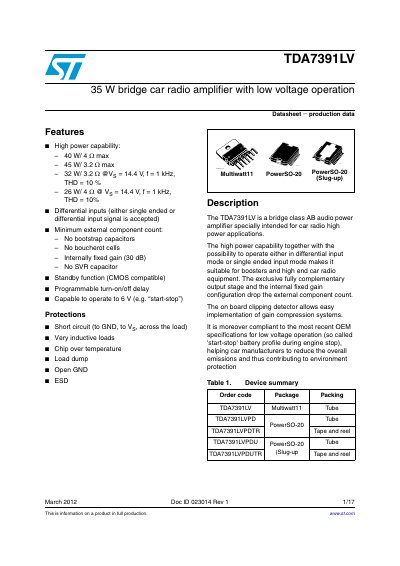

STMicroelectronics TDA7391LV 35W Bridge Car Radio Amplifier Datasheet
The TDA7391LV is a bridge class AB audio power amplifier specifically intended for car radio high power applications. It features a high power capability of up to 40W into a 4Ω load and supports low voltage operation down to 6V, making it suitable for 'start-stop' battery profiles. The device includes a fully complementary output stage with an internal fixed gain of 30dB, eliminating the need for external bootstrap capacitors or boucherot cells.
Read onlineSTMicroelectronics TDA7391 specifications
| Output power (4Ω, 14.4V) | 40 W |
|---|---|
| Output power (3.2Ω, 14.4V) | 45 W |
| Supply voltage range | 6 to 18 V |
| Total quiescent current | 150 mA |
| Output offset voltage | 120 mV |
| Package type | Multiwatt11, PowerSO-20 |
Source: STMicroelectronics TDA7391LV 35W Bridge Car Radio Amplifier Datasheet
All STMicroelectronics TDA7391 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum supply voltage for operation?
The device is capable of operating down to 6 V, which is suitable for start-stop battery profiles.
From: STMicroelectronics TDA7391LV 35W Bridge Car Radio Amplifier Datasheet
Does the TDA7391LV require external bootstrap capacitors?
No, the amplifier does not require bootstrap capacitors as it uses an internal fixed gain configuration.
From: STMicroelectronics TDA7391LV 35W Bridge Car Radio Amplifier Datasheet
What protections are included in the TDA7391?
The device includes protection for short circuits, very inductive loads, chip overtemperature, load dump, open ground, and ESD.
From: STMicroelectronics TDA7391 Bridge Class AB Audio Power Amplifier Datasheet
What is the maximum output power of this amplifier?
The device provides a maximum output power of 45W when driving a 3.2Ω load at 14.4V.
From: STMicroelectronics TDA7391 Bridge Class AB Audio Power Amplifier Datasheet
What is the maximum supply voltage for the TDA7391PD?
The maximum DC supply voltage is 28 V.
From: STMicroelectronics TDA7391PD Bridge Audio Power Amplifier Datasheet
How much standby current does the device draw?
The standby current is 100 pA when the standby pin is at 1.5 V.
From: STMicroelectronics TDA7391PD Bridge Audio Power Amplifier Datasheet
