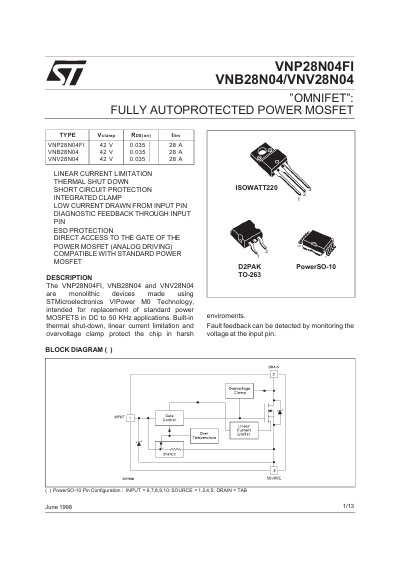

STMicroelectronics VNP28N04FI/VNB28N04/VNV28N04 Datasheet
The document describes the VNP28N04FI, VNB28N04, and VNV28N04 monolithic devices made using STMicroelectronics VIPower M0 Technology. These are fully autoprotected power MOSFETs intended for replacement of standard power MOSFETS in DC to 50 KHz applications.
Read onlineSTMicroelectronics VNP28N04 specifications
| Drain-source Voltage (Vin = 0) | 42 V |
|---|---|
| Reverse DC Output Current | -28 A |
| Operating Junction Temperature | Internally Limited |
| Storage Temperature Range | -55 to 150 °C |
| Total Dissipation at Tc = 25 °C | 83 W |
| Drain-source Clamp Voltage (Ip=200mA) | 42 V Typ. |
| Static Drain-source On Resistance | 0.035 Q Typ. |
| Turn-on Delay Time | 200 ns Max. |
Source: STMicroelectronics VNP28N04 Fully Autoprotected Power MOSFET Datasheet
All STMicroelectronics VNP28N04 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature?
The device operates with a junction temperature internally limited to -55 to 150 °C.
From: STMicroelectronics VNP28N04FI/VNB28N04/VNV28N04 Datasheet
What is the overtemperature shutdown threshold?
Overtemperature cutout occurs at a minimum of 150 °C.
From: STMicroelectronics VNP28N04FI/VNB28N04/VNV28N04 Datasheet
What is the overtemperature shutdown threshold?
The device shuts down at a minimum of 150°C.
From: STMicroelectronics VNP28N04 Fully Autoprotected Power MOSFET Datasheet
At what temperature does the device restart automatically?
The device is automatically restarted when the chip temperature falls below 135°C.
From: STMicroelectronics VNP28N04 Fully Autoprotected Power MOSFET Datasheet
What is the overvoltage clamp voltage of the device?
The integrated overvoltage clamp is set at 42 V.
From: STMicroelectronics VNP28N04FI VNB28N04 VNV28N04 Power MOSFET Datasheet
At what temperature does the over‑temperature shutdown activate?
Over‑temperature shutdown occurs at a minimum of 150 °C.
From: STMicroelectronics VNP28N04FI VNB28N04 VNV28N04 Power MOSFET Datasheet
