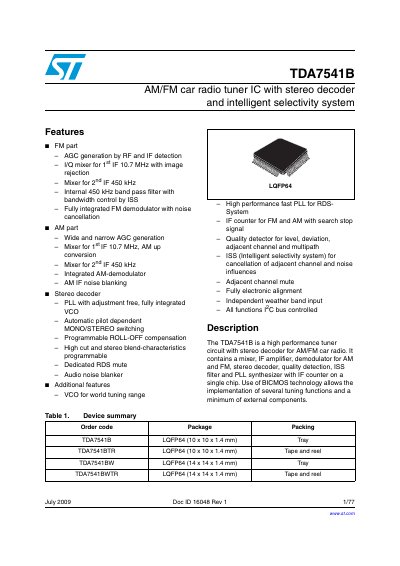

STMicroelectronics TDA7541B AM/FM Car Radio Tuner IC Datasheet
The TDA7541B is a high-performance tuner circuit designed for AM/FM car radios, integrating a mixer, IF amplifier, demodulators for both AM and FM, a stereo decoder, quality detection, and an Intelligent Selectivity System (ISS) on a single chip. Utilizing BICMOS technology, it minimizes the number of external components required for implementation.
Read onlineSTMicroelectronics TDA7541 specifications
| Supply voltage (VCC1, VCC2, VCCMIX1, VCCVCO, VCCIF) | 7.7 to 9 V |
|---|---|
| Ambient temperature range | -40 to 85 °C |
| Storage temperature range | -55 to +150 °C |
| I2C bus clock frequency | 400 kHz |
| Thermal resistance junction-to-ambient | 70 °C/W |
Source: STMicroelectronics TDA7541B AM/FM Car Radio Tuner IC Datasheet
All STMicroelectronics TDA7541 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical supply voltage for the TDA7541B?
The typical supply voltage is 8.5 V.
From: STMicroelectronics TDA7541B AM/FM Car Radio Tuner IC Datasheet
Does the TDA7541B include a stereo decoder?
Yes, it contains a fully integrated stereo decoder with automatic pilot dependent MONO/STEREO switching.
From: STMicroelectronics TDA7541B AM/FM Car Radio Tuner IC Datasheet
What is the physical size of the TDA7541 package?
The LQFP64 package measures 10 x 10 x 1.4 mm.
From: STMicroelectronics TDA7541 AM/FM Car-Radio Tuner IC Datasheet
What is the initial release date of this datasheet?
The initial release of this document occurred on 19-Jul-2007.
From: STMicroelectronics TDA7541 AM/FM Car-Radio Tuner IC Datasheet
