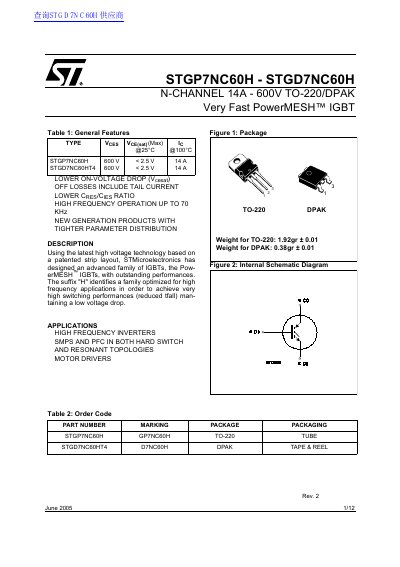

STMicroelectronics STGP7NC60H/STGD7NC60H N-Channel IGBT Datasheet
This document is a datasheet for the STGP7NC60H and STGD7NC60H, which are N-Channel 14A 600V Very Fast PowerMESH IGBTs. The devices are available in TO-220 and DPAK packages and are optimized for high-frequency applications up to 70 kHz, featuring a patented strip layout for outstanding performance.
Read onlineSTMicroelectronics STGP7NC60H specifications
| Collector Current (continuous) @ 25°C | 25 A |
|---|---|
| Collector Current (continuous) @ 100°C | 14 A |
| Thermal Resistance Junction-case (TO-220) | 1.56 °C/W |
| Maximum Operating Frequency | 70 kHz |
Source: STMicroelectronics STGP7NC60H/STGD7NC60H N-Channel IGBT Datasheet
All STMicroelectronics STGP7NC60H documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for these IGBTs?
They are designed for high frequency inverters, SMPS and PFC in hard switch and resonant topologies, and motor drivers.
From: STMicroelectronics STGP7NC60H/STGD7NC60H N-Channel IGBT Datasheet
What is the maximum collector current for the TO-220 package?
The maximum continuous collector current for the TO-220 package at 25°C is 25 A.
From: STMicroelectronics STGP7NC60H/STGD7NC60H N-Channel IGBT Datasheet
What are the applications for these IGBTs?
They are designed for high frequency inverters, SMPS and PFC in both hard switch and resonant topologies, and motor drivers.
From: STMicroelectronics STGP7NC60HD/STGF7NC60HD/STGB7NC60HD N-Channel IGBT Datasheet
What is the maximum operating junction temperature?
The operating junction temperature ranges from a minimum of -55°C to a maximum of 150°C.
From: STMicroelectronics STGP7NC60HD/STGF7NC60HD/STGB7NC60HD N-Channel IGBT Datasheet
