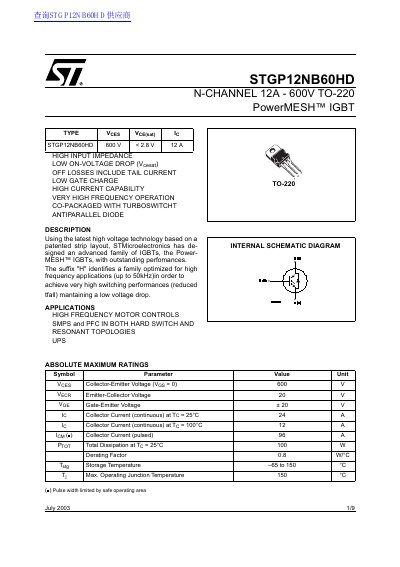

STMicroelectronics STGP12NB60HD PowerMESH IGBT Datasheet
This document is a datasheet for the STGP12NB60HD, an N-channel PowerMESH™ IGBT manufactured by STMicroelectronics. The device is designed for high-frequency applications up to 50kHz, featuring a co-packaged antiparallel diode and TurboSwitch™ technology. It is optimized for high-frequency motor controls, SMPS, PFC, and UPS applications.
Read onlineSTMicroelectronics STGP12NB60H specifications
| Collector Current (continuous) at 25°C | 24 A |
|---|---|
| Collector Current (continuous) at 100°C | 12 A |
| Total Dissipation at 25°C | 100 W |
| Package Type | TO-220 |
| Maximum Operating Junction Temperature | 150 °C |
| Maximum Switching Frequency | 50kHz |
Source: STMicroelectronics STGP12NB60HD PowerMESH IGBT Datasheet
All STMicroelectronics STGP12NB60H documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous collector current for this IGBT at a case temperature of 25°C?
The maximum continuous collector current is 24 A when the case temperature is 25°C.
From: STMicroelectronics STGP12NB60HD PowerMESH IGBT Datasheet
What is the maximum total power dissipation allowed at a temperature of 25°C?
The maximum total power dissipation is 100 W at a temperature of 25°C.
From: STMicroelectronics STGP12NB60HD PowerMESH IGBT Datasheet
What are the main applications for this IGBT?
The device is suitable for high frequency motor controls, SMPS and PFC in both hard switch and resonant topologies, and UPS systems.
Is this device optimized for high frequency operation?
Yes, the suffix "H" identifies a family optimized to achieve very low switching times for high frequency applications (<120kHz).
