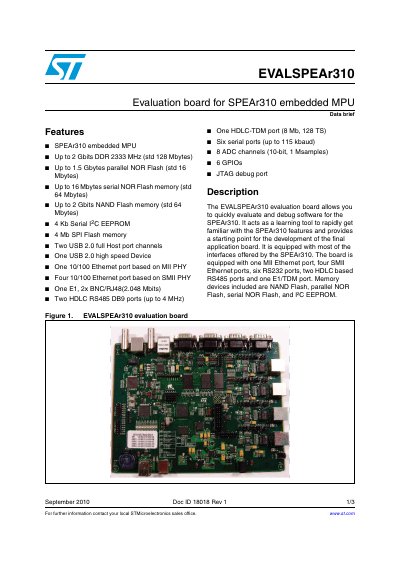

STMicroelectronics EVALSPEAr310 Evaluation Board Data Brief
The EVALSPEAr310 is an evaluation board designed for the SPEAr310 embedded MPU. It serves as a learning tool to help developers quickly evaluate and debug software, providing access to most interfaces offered by the chip. The board includes standard memory configurations such as up to 2 Gbits of DDR, parallel NOR Flash, and serial NOR Flash.
Read onlineSTMicroelectronics EVALSPEAr310 specifications
| Embedded MPU | SPEAr310 |
|---|---|
| DDR Memory | Up to 2 Gbits (std 128 Mbytes) |
| Parallel NOR Flash | Upto 1.5 Gbytes (std 16 Mbytes) |
| Serial NOR Flash | Up to 16 Mbytes (std 64 Mbytes) |
| NAND Flash | Up to 2 Gbits (std 64 Mbytes) |
| EEPROM | 4 Kb Serial I2C |
| HDLC-TDM Port | One (8 Mb, 128 TS) |
| Serial Ports | Six (up to 115 kbaud) |
| ADC Channels | 8 (10-bit, 1 Msamples) |
| GPIOs | 6 |
| USB Host Ports | Two USB 2.0 full Host port channels |
| USB Device Port | One USB 2.0 high speed Device |
| SMII Ethernet Ports | Four 10/100 Ethernet port based on SMI| PHY |
| RS232 Ports | Six |
| HDLC RS485 Ports | Two (up to 4 MHz) |
| E1/TDM Port | One E1, 2x BNC/RJ48(2.048 Mbits) |
Source: STMicroelectronics EVALSPEAr310 Evaluation Board Data Brief
All STMicroelectronics EVALSPEAr310 documents by type
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the EVALSPEAr310 evaluation board used for?
The board allows you to quickly evaluate and debug software for the SPEAr310 embedded MPU.
From: STMicroelectronics EVALSPEAr310 Evaluation Board Data Brief
What is the maximum data rate of the HDLC-TDM port?
The board includes one HDLC-TDM port with a speed of 8 Mb.
From: STMicroelectronics EVALSPEAr310 Evaluation Board Data Brief
What components are required to enable remote reset?
You need one device P/N STM6315SDW13F and one resistor in package 0603 with a value of 0 ohm.
From: STMicroelectronics AN3321 Application Note: Remote Reset from JTAG on EVALSPEAr310
Which chip needs to be replaced on the board?
The reset chip U11 must be replaced with a STM6315SDW13F.
From: STMicroelectronics AN3321 Application Note: Remote Reset from JTAG on EVALSPEAr310
