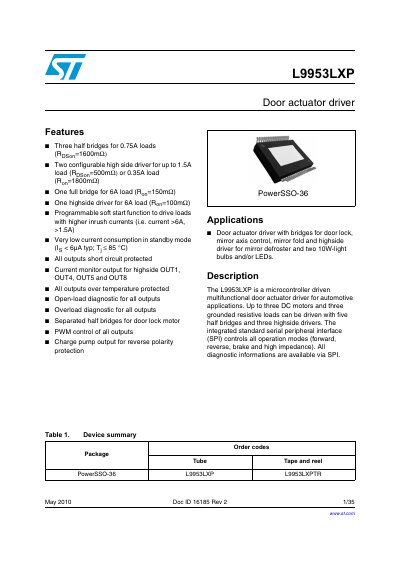

STMicroelectronics L9953LXP Door Actuator Driver Datasheet
The L9953LXP is a multifunctional door actuator driver designed for automotive applications. It integrates up to three DC motors and three resistive loads, controlled via a standard Serial Peripheral Interface (SPI). The device includes five half bridges and three highside drivers to manage door locks, mirror axis control, and defroster functions.
Key features include programmable soft start for high inrush currents, very low current consumption in standby mode, and comprehensive protection mechanisms such as short circuit, over-temperature, open-load, and overload diagnostics. All diagnostic information is accessible via the SPI interface.
STMicroelectronics L9953 specifications
| Half bridge load current | 0.75A |
|---|---|
| High side driver load current | 1.5A |
| Full bridge load current | 6A |
| Highside driver load current | 6A |
| Package type | PowerSSO-36 |
Source: STMicroelectronics L9953LXP Door Actuator Driver Datasheet
All STMicroelectronics L9953 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the L9953LXP used for?
It is a door actuator driver for automotive applications, controlling door locks, mirror axis control, and defroster functions.
From: STMicroelectronics L9953LXP Door Actuator Driver Datasheet
What is the maximum load current for the full bridge output?
The full bridge can drive a load of up to 6A.
From: STMicroelectronics L9953LXP Door Actuator Driver Datasheet
What is the maximum current rating for a full bridge output?
The device supports one full bridge capable of driving a 6A load.
From: STMicroelectronics L9953/L9953XP Door Actuator Driver Datasheet
