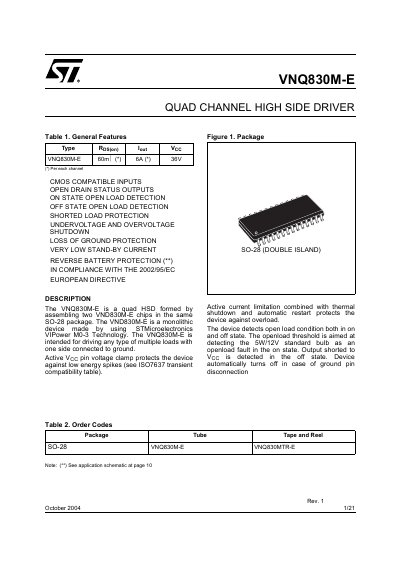

STMicroelectronics VNQ830M-E Quad Channel High Side Driver Datasheet
The VNQ830M-E is a quad high-side driver (HSD) formed by assembling two VND830M-E chips in a single SO-28 package. It is designed for driving multiple loads with one side connected to ground and utilizes STMicroelectronics VIPower M0-3 Technology. The device includes active VCC pin voltage clamping to protect against low energy spikes and features automatic restart after overload protection.
Read onlineSTMicroelectronics VNQ830 specifications
| Number of Channels | Quad (4) |
|---|---|
| Supply Voltage | 5.5 to 36 V |
| Package Type | SO-28 |
| Operating Temperature | -55 to 150 °C |
Source: STMicroelectronics VNQ830M-E Quad Channel High Side Driver Datasheet
All STMicroelectronics VNQ830 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- STMicroelectronics VNQ830M-E Quad Channel High Side Driver Datasheet 21 p
- STMicroelectronics VNQ830PEP-E Quad Channel High Side Driver Datasheet 27 p
- STMicroelectronics VNQ830P-E Quad Channel High-Side Driver Datasheet 27 p
- STMicroelectronics VNQ830 Quad Channel High-Side Driver Datasheet 28 p
- STMicroelectronics VNQ830M Quad Channel High Side Driver Datasheet 28 p
Questions answered in these manuals
Does the device detect open loads?
Yes, it detects open load conditions in both the on and off states.
From: STMicroelectronics VNQ830M-E Quad Channel High Side Driver Datasheet
How much power can each channel dissipate at a junction temperature of 25°C?
The maximum power dissipation per channel is 6.25 W when the pins are at 25°C.
From: STMicroelectronics VNQ830M-E Quad Channel High Side Driver Datasheet
What is the package type for this device?
The device is available in a PowerSSO-24 package.
From: STMicroelectronics VNQ830PEP-E Quad Channel High Side Driver Datasheet
Does the device include open-load detection?
Yes, it detects the open load condition in both the on and off-state.
From: STMicroelectronics VNQ830PEP-E Quad Channel High Side Driver Datasheet
What is the maximum supply voltage?
The device supports a DC supply voltage up to 36 V.
From: STMicroelectronics VNQ830P-E Quad Channel High-Side Driver Datasheet
Does this driver include thermal shutdown protection?
Yes, the device includes thermal shutdown protection and diagnosis.
From: STMicroelectronics VNQ830P-E Quad Channel High-Side Driver Datasheet
