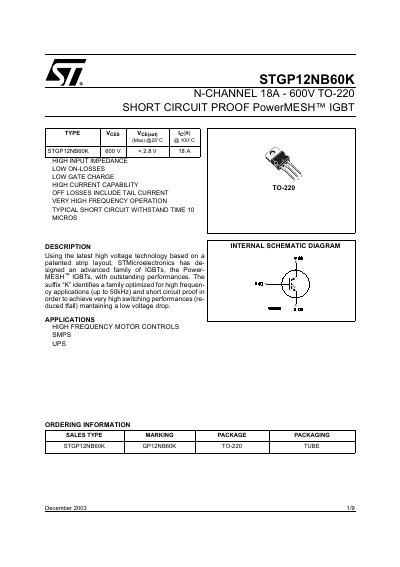

STMicroelectronics STGP12NB60K N-Channel IGBT Datasheet
This document describes the STMicroelectronics STGP12NB60K, a short circuit proof N-channel IGBT featuring PowerMESH technology. It is designed for high frequency motor controls, SMPS, and UPS applications with a maximum collector-emitter voltage of 600V.
Read onlineSTMicroelectronics STGP12NB60K specifications
| Collector-Emitter Voltage (Vces) | 600 V |
|---|---|
| Collector Current (continuous) at Tc = 25°C | 30 A |
| Collector Current (continuous) at Tc = 100°C | 18 A |
| Short Circuit Withstand Time | 10 us |
| Total Dissipation at Tc = 25°C | 125 W |
| Storage Temperature Range | -65 to 150 °C |
| Package Types | TO-220, D2PAK |
Source: STMicroelectronics STGP12NB60KD/STGB12NB60KD PowerMESH IGBT Datasheet
All STMicroelectronics STGP12NB60K documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum collector current for this IGBT at a case temperature of 25°C?
The maximum continuous collector current is 30 A when the case temperature is 25°C.
From: STMicroelectronics STGP12NB60K N-Channel IGBT Datasheet
What is the maximum total power dissipation allowed for this device?
The maximum total power dissipation is 125 W when the case temperature is 25°C.
From: STMicroelectronics STGP12NB60K N-Channel IGBT Datasheet
What are the main applications for these IGBTs?
They are designed for high-frequency motor controls, SMPS (Switched Mode Power Supplies), and UPS systems.
From: STMicroelectronics STGP12NB60KD/STGB12NB60KD PowerMESH IGBT Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature is 150 °C.
From: STMicroelectronics STGP12NB60KD/STGB12NB60KD PowerMESH IGBT Datasheet
