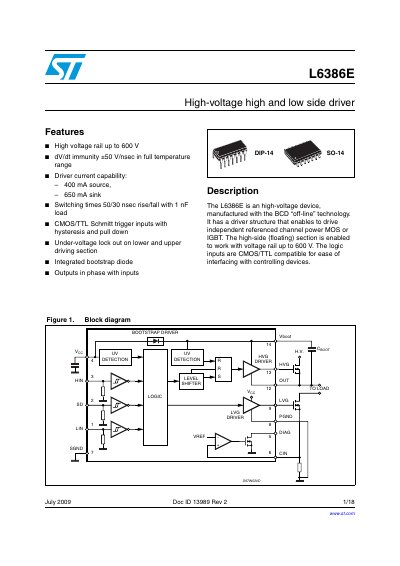

STMicroelectronics L6386E High-Voltage Driver Datasheet
The L6386E is a high-voltage device manufactured with BCD off-line technology, designed to drive independent referenced channel power MOS or IGBT. It features a high-side floating section capable of working with a voltage rail up to 600 V and logic inputs compatible with CMOS/TTL.
Read onlineSTMicroelectronics L6386 specifications
| Output voltage | -3 to 580 V |
|---|---|
| Supply voltage | -0.3 to +18 V |
| Floating supply voltage | -1 to 618 V |
| Switching frequency | 400 kHz |
| Fall time | 30 ns |
Source: STMicroelectronics L6386E High-Voltage Driver Datasheet
All STMicroelectronics L6386 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum junction temperature?
The maximum junction temperature is 150 °C.
From: STMicroelectronics L6386E High-Voltage Driver Datasheet
What is the quiescent current at 15 V supply?
The quiescent current is typically 250 μA to 320 μA when Vcc is 15 V.
From: STMicroelectronics L6386E High-Voltage Driver Datasheet
What is the maximum voltage rail supported?
The device supports a high voltage rail up to 600 V.
From: STMicroelectronics L6386AD High-Voltage Driver Datasheet
Does the L6386AD include an external diode?
No, it features an integrated bootstrap diode that replaces the external fast recovery diode.
From: STMicroelectronics L6386AD High-Voltage Driver Datasheet
What is the maximum high-voltage rail supported?
The device supports a high-voltage rail up to 600V.
From: STMicroelectronics L6386 High-Voltage High and Low Side Driver Datasheet
Does the L6386 include an external diode?
No, it features a patented integrated structure that replaces the external diode.
From: STMicroelectronics L6386 High-Voltage High and Low Side Driver Datasheet
