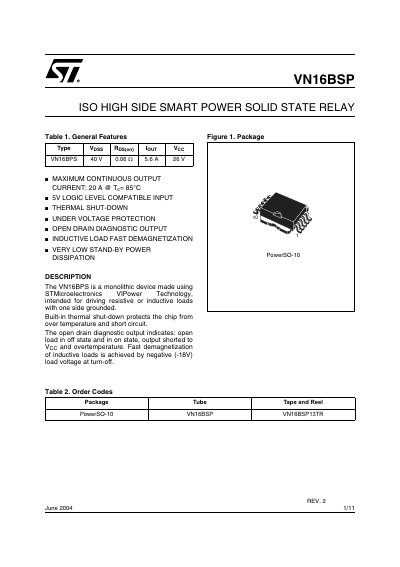

STMicroelectronics VN16BSP ISO High Side Smart Power Solid State Relay Datasheet
The VN16BSP is a monolithic device made using VviPower Technology intended for driving resistive or inductive loads with one side grounded. It features built-in thermal shut-down to protect the chip from over-temperature and short circuits, as well as under-voltage protection.
Key characteristics include 5V logic level compatible input, an open drain diagnostic output that indicates faults such as open load or over-temperature, and fast demagnetization of inductive loads achieved by a negative voltage at turn-off. The device is available in a PowerSO-10 package.
STMicroelectronics VN16B specifications
| Maximum Continuous Output Current | 20 A @ Tj = 85°C |
|---|---|
| Drain-Source Breakdown Voltage | 40 V |
| RMS Output Current | 20 A at Tj = 85°C |
| Supply Voltage Range | 6 to 13 V (Typ) |
| Thermal Shut-down Temperature | 140 to 160°C |
Source: STMicroelectronics VN16BSP ISO High Side Smart Power Solid State Relay Datasheet
All STMicroelectronics VN16B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous output current?
The maximum continuous output current is 20 A at a junction temperature of 85°C.
From: STMicroelectronics VN16BSP ISO High Side Smart Power Solid State Relay Datasheet
Does the device have thermal protection?
Yes, built-in thermal shut-down protects the chip from over-temperature and short circuit conditions.
From: STMicroelectronics VN16BSP ISO High Side Smart Power Solid State Relay Datasheet
Does the device have diagnostic capabilities?
Yes, it has an open drain diagnostic output that indicates open load in off state and on state, output shorted to Vcc, and overtemperature.
From: STMicroelectronics VN16B ISO High Side Smart Power Solid State Relay Datasheet
How does the device protect against reverse battery voltage?
The simplest method is to insert a Schottky diode between pin 1 (GND) and ground.
From: STMicroelectronics VN16B ISO High Side Smart Power Solid State Relay Datasheet
