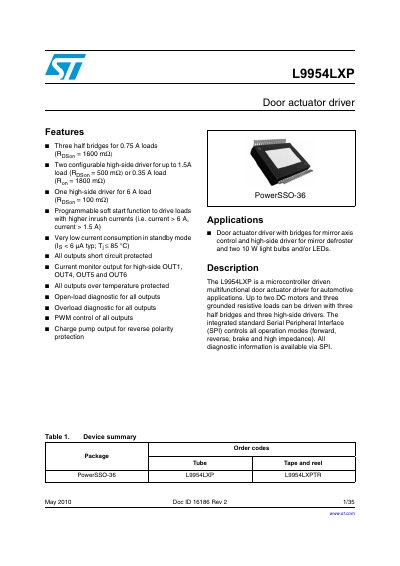

STMicroelectronics L9954LXP Door Actuator Driver Datasheet
The L9954LXP is a microcontroller driven multifunctional door actuator driver designed for automotive applications. It integrates three half bridges capable of driving 0.75 A loads and two configurable high-side drivers supporting up to 1.5 A or 0.35 A loads, plus one dedicated high-side driver for 6 A loads.
The device features programmable soft start functions to handle higher inrush currents and includes comprehensive protection mechanisms such as short circuit, over-temperature, open-load, and overload diagnostics for all outputs. All operation modes are controlled via an integrated standard Serial Peripheral Interface (SPI), with diagnostic information available through the same interface.
STMicroelectronics L9954 specifications
| Half bridge load current | 1.5A |
|---|---|
| Highside driver load current | 6A |
| Highside driver output resistance | 100mΩ |
| Highside driver output resistance (alternative) | 800mΩ |
| Standby current consumption | < 1µA |
| Package type | PowerSO-36 / PowerSSO-36 |
Source: STMicroelectronics L9954/L9954XP Door Actuator Driver Datasheet
All STMicroelectronics L9954 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary application of the L9954LXP?
It is a door actuator driver with bridges for mirror axis control and high-side drivers for mirror defroster and lighting.
From: STMicroelectronics L9954LXP Door Actuator Driver Datasheet
What loads can the L9954LXP drive with its three half bridges?
The device can drive three half bridges for loads up to 0.75 A.
From: STMicroelectronics L9954LXP Door Actuator Driver Datasheet
What are the main applications for the L9954?
The device is used as a current monitor output for highside OUT1, OUT4, OUT5, and OUT6 control and as a highside driver for mirror defroster and two 10W-light bulbs.
From: STMicroelectronics L9954/L9954XP Door Actuator Driver Datasheet
How is the device controlled?
The integrated standard serial peripheral interface (SPI) controls all operation modes and provides access to diagnostic information.
From: STMicroelectronics L9954/L9954XP Door Actuator Driver Datasheet
