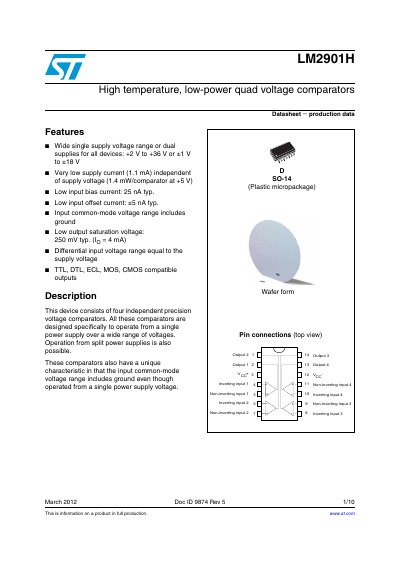

STMicroelectronics LM2901H Quad Voltage Comparator Datasheet
The document describes the LM2901H, a device consisting of four independent precision voltage comparators designed to operate from a single power supply over a wide range of voltages (+2 V to +36 V). A unique characteristic is that the input common-mode voltage range includes ground even when operated from a single positive supply.
The datasheet provides absolute maximum ratings, operating conditions, electrical characteristics including supply current and response time, circuit schematics, package mechanical data for the SO-14 package, and ordering information. It covers both standard and automotive-grade applications.
STMicroelectronics LM2901 specifications
| Supply voltage range | +2 V to +36 V or +1 V to +18V (dual) |
|---|---|
| Supply current | 1.4 mA typ at +5 V |
| Input bias current | 25 nA typ. |
| Operating temperature range | -40 to +150 °C |
| Output saturation voltage | 250 mV typ. (Io = 4 mA) |
