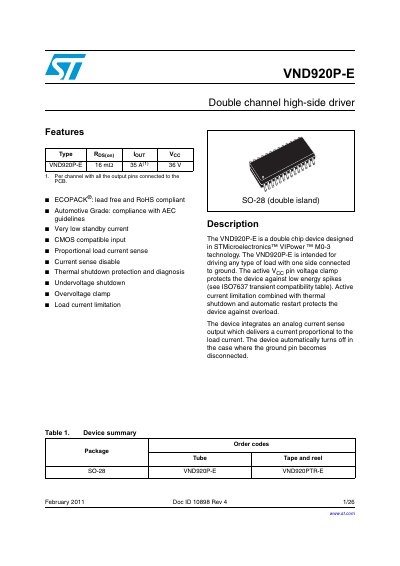

STMicroelectronics VND920P-E Double Channel High-Side Driver Datasheet
The VND920P-E is a double channel high-side driver designed for driving loads with one side connected to ground. It features proportional load current sense technology, active voltage clamps, and comprehensive protection mechanisms including thermal shutdown, undervoltage shutdown, and overvoltage clamp current limitation. The device is intended for automotive applications and complies with AEC guidelines.
Read onlineSTMicroelectronics VND920 specifications
| Rds(on) | 16 mΩ |
|---|---|
| Package | SO-28 (double island) |
| Power dissipation | 6.25 W |
Source: STMicroelectronics VND920P-E Double Channel High-Side Driver Datasheet
All STMicroelectronics VND920 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the VND920P-E RoHS compliant?
Yes, the device is lead free and RoHS compliant.
From: STMicroelectronics VND920P-E Double Channel High-Side Driver Datasheet
Does the VND920P-E include thermal shutdown protection?
Yes, it includes thermal shutdown protection and diagnosis.
From: STMicroelectronics VND920P-E Double Channel High-Side Driver Datasheet
What is the maximum DC supply voltage?
The absolute maximum rating for the DC supply voltage (VCC) is 4 V.
Is the device compatible with CMOS inputs?
Yes, the VND920 features a CMOS compatible input.
