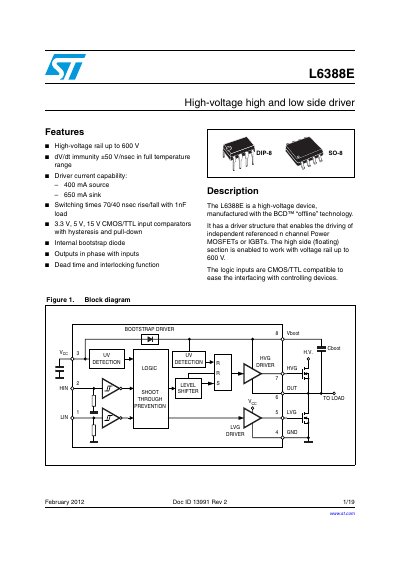

STMicroelectronics L6388E High-voltage High and Low Side Driver Datasheet
The L6388E is a high-voltage device manufactured with BCD offline technology, designed to drive independent referenced n-channel Power MOSFETs or IGBTs. It features a high-side floating section capable of operating with voltage rails up to 600 V and logic inputs compatible with CMOS/TTL standards for easy interfacing with controlling devices.
Read onlineSTMicroelectronics L6388 specifications
| Output voltage | -18 V to Vboot |
|---|---|
| Supply voltage | -0.3 to 18 V |
| Floating supply voltage | -0.3 to 618 V |
| High side gate output voltage | -0.3 Vboot to Vout |
| Low side gate output voltage | -0.3 Vcc to +0.3 V |
| Total power dissipation | 750 mW |
| Junction temperature | 150 °C |
| Switching frequency | 400 kHz |
| Source short-circuit current | 400 mA |
| Sink short-circuit current | 650 mA |
Source: STMicroelectronics L6388E High-voltage High and Low Side Driver Datasheet
All STMicroelectronics L6388 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum floating supply voltage?
The high side floating section is enabled to work with a voltage rail up to 600 V.
From: STMicroelectronics L6388E High-voltage High and Low Side Driver Datasheet
What technology is used to manufacture the L6388E?
It is manufactured with the BCD offline technology.
From: STMicroelectronics L6388E High-voltage High and Low Side Driver Datasheet
What is the maximum output voltage?
The maximum output voltage is 580 V under recommended operating conditions.
From: STMicroelectronics L6388 High-Voltage High and Low Side Driver Datasheet
Does the L6388 include an internal bootstrap diode?
Yes, the device features an internal bootstrap diode to replace external fast recovery diodes.
From: STMicroelectronics L6388 High-Voltage High and Low Side Driver Datasheet
