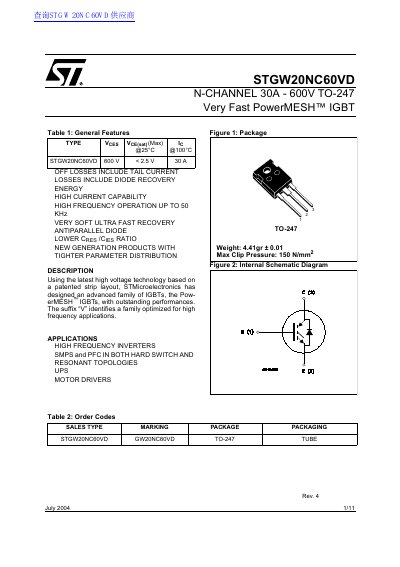

STMicroelectronics STGW20NC60VD IGBT Datasheet
Datasheet 11 pages · 229 KB · EN
This document provides technical specifications for the STGW20NC60VD, an N-Channel IGBT featuring PowerMESH technology optimized for high-frequency applications up to 50 kHz. The device is housed in a TO-247 package and includes an antiparallel diode with ultra-fast recovery characteristics.
Read onlineSTMicroelectronics STGW20NC60VD specifications
| Collector Current (continuous) at 25°C | 60 A |
|---|---|
| Collector Current (continuous) at 100°C | 30 A |
| Package Type | TO-247 |
| Total Dissipation at Tc = 25°C | 200 W |
| Storage Temperature | -55 to 150 °C |
All STMicroelectronics STGW20NC60VD documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
