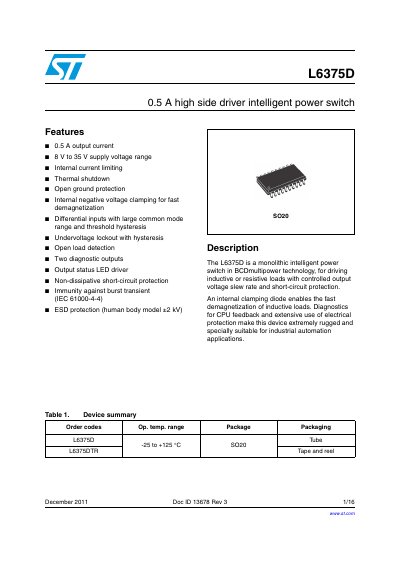

STMicroelectronics L6375D Intelligent Power Switch Datasheet
The L6375D is a monolithic intelligent power switch in BCD multipower technology designed for driving inductive or resistive loads. It features controlled output voltage slew rate and short-circuit protection, making it suitable for industrial automation applications. The device includes an internal clamping diode for fast demagnetization of inductive loads and extensive electrical protection.
Read onlineSTMicroelectronics L6375 specifications
| Output current | 0.5 A |
|---|---|
| Supply voltage range | 8 V to 35 V |
| Operating temperature range | -25 to +125 °C |
| Maximum operating frequency | 25 KHz |
Source: STMicroelectronics L6375D Intelligent Power Switch Datasheet
All STMicroelectronics L6375 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating supply voltage range?
The device operates with a supply voltage ranging from 8 V to 35 V.
From: STMicroelectronics L6375D Intelligent Power Switch Datasheet
Does the L6375D have open ground protection?
Yes, the device includes open ground protection as a key feature.
From: STMicroelectronics L6375D Intelligent Power Switch Datasheet
What is the output current of the L6375S?
The device provides an output current of 0.5 A.
From: STMicroelectronics L6375S Intelligent Power Switch Datasheet
What is the supply voltage range for the L6375S?
The supply voltage range is from 8 V to 35 V.
From: STMicroelectronics L6375S Intelligent Power Switch Datasheet
How does the L6375 protect against short circuits?
It uses non-dissipative short circuit protection, driving the output power MOS in linear mode to limit current and switching it off after a set time interval.
From: STMicroelectronics L6375 Intelligent Power Switch Preliminary Data Sheet
What happens when the device overheats?
The device shuts off and the DIAG2 output goes LOW when the junction temperature exceeds 150°C.
From: STMicroelectronics L6375 Intelligent Power Switch Preliminary Data Sheet
