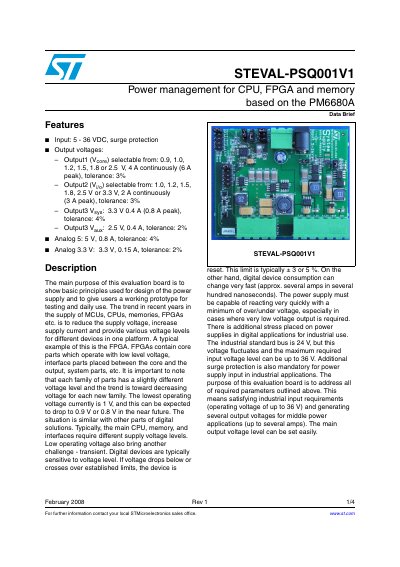

STMicroelectronics STEVAL-PSQ001V1 Power Management Evaluation Board Data Brief
This document is a data brief for the STEVAL-PSQ001V1, an evaluation board designed to demonstrate basic power supply design principles. It features the PM6680A power management IC and provides a working prototype for testing various voltage configurations required by MCUs, CPUs, memories, and FPGAs.
Read onlineSTMicroelectronics STEVAL-PSQ001V1 specifications
| Input Voltage Range | 5 - 36 VDC |
|---|---|
| Output2 (V i/o) Voltage Options | 1.0, 1.2, 1.5, 1.8, 2.5 V or 3.3 V |
| Output3 V sys Voltage | 3.3 V |
| Analog 5 Voltage | 5 V, 0.8 A |
Source: STMicroelectronics STEVAL-PSQ001V1 Power Management Evaluation Board Data Brief
All STMicroelectronics STEVAL-PSQ001V1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the operating input voltage range for this evaluation board?
The board accepts an input voltage ranging from 5 to 36 VDC.
From: STMicroelectronics STEVAL-PSQ001V1 Power Management Evaluation Board Data Brief
What are the selectable output voltages for the main core power supply?
Output1 (V core) can be selected from 0.9, 1.0, 1.2, 1.5, 1.8 or 2.5 V.
From: STMicroelectronics STEVAL-PSQ001V1 Power Management Evaluation Board Data Brief
What is the input voltage range for the STEVAL-PSQ001V1?
The input voltage range is 5 V to 36 V DC.
From: STMicroelectronics AN2559 STEVAL-PSQ001V1 System Power Supply Board Application Note
Which components are used for the dual DC-DC converter?
The dual DC-DC converter is based on the PM6680A.
From: STMicroelectronics AN2559 STEVAL-PSQ001V1 System Power Supply Board Application Note
